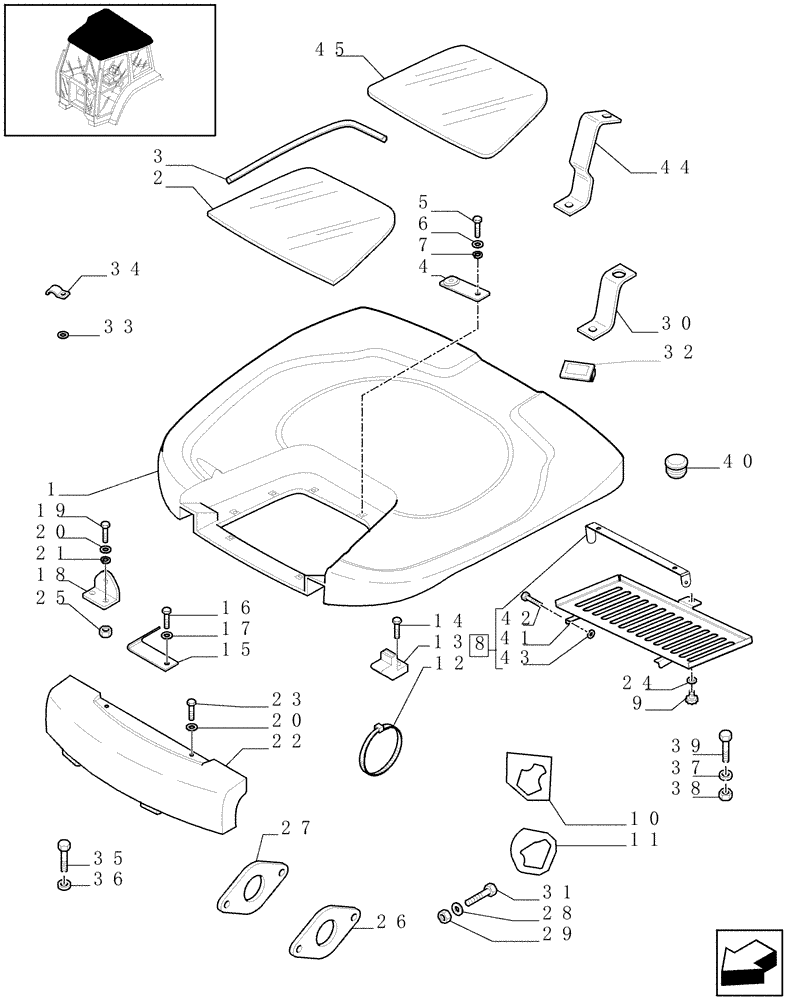

Запчасти Case IH MAXXUM 100 (1.94.0[01A]) - ROOF WITH LOW PROFILE - D5568 - C7193 (10) - OPERATORS PLATFORM/CAB

1

87614354

ROOF

1шт.

2

87326644

GLASS

, Serial Range: -C6755

1шт.

3

87367799

SEAL,1910mm L

1шт.

4

87559265

RETAINER,6.35mm ID x 22.22mm OD x 8.33mm Thk

8шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

9шт.

6

10516474

LOCK WASHER

8шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

9шт.

8

87341182

FILTER COVER

RH, ASSY

1шт.

8

87341180

FILTER COVER

LH, ASSY

1шт.

9

87337041

KNOB,M6 x 10mm

2шт.

10

82038034

INSULATION

LH

2шт.

10

82038033

GASKET,10mm Thk

RH

2шт.

11

82025910

GASKET,10 Thk, Black

LH

2шт.

11

82023417

GASKET,10mm Thk, Black

RH

2шт.

12

82028498

CABLE TIE

15шт.

13

81864285

CLIP,M6, Black

15шт.

14

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

15шт.

15

87327068

BRACKET

1шт.

16

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

1шт.

17

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

18

87327093

BRACKET

1шт.

19

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

20

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

21

80322355

WASHER

2шт.

22

87323767

COVER

1шт.

23

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

4шт.

24

87359165

RETAINER CUP,M6

2шт.

25

81872135

NUT,Retaining, M4.20

1шт.

26

87546897

PLATE

2шт.

27

87546909

GASKET,2mm Thk

2шт.

28

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

29

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

30

87367810

BRACKET

1шт.

31

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

32

5151033

PLASTIC PLUG

1шт.

33

81829134

LOCK WASHER,0.464" ID x 0.76" OD x 0.04" Thk

2шт.

33

83901553

LOCK WASHER,M5

8шт.

34

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

35

83956457

SCREW,M4 x 10, 4.8

2шт.

36

87398511

WASHER,8.2mm ID x 35mm OD x 2mm Thk

2шт.

37

87547806

RETAINER

2шт.

38

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

39

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

40

87600545

BUTTON PLUG,M17 x 11.50mm

4шт.

41

87326775

FILTER COVER

2шт.

42

10033111

CLEVIS PIN,M4 x 12

4шт.

43

14227876

CLIP,M4, Push

4шт.

44

84271908

BRACKET

1шт.

45

84297668

GLASS

, Start Serial: D6755

1шт.
