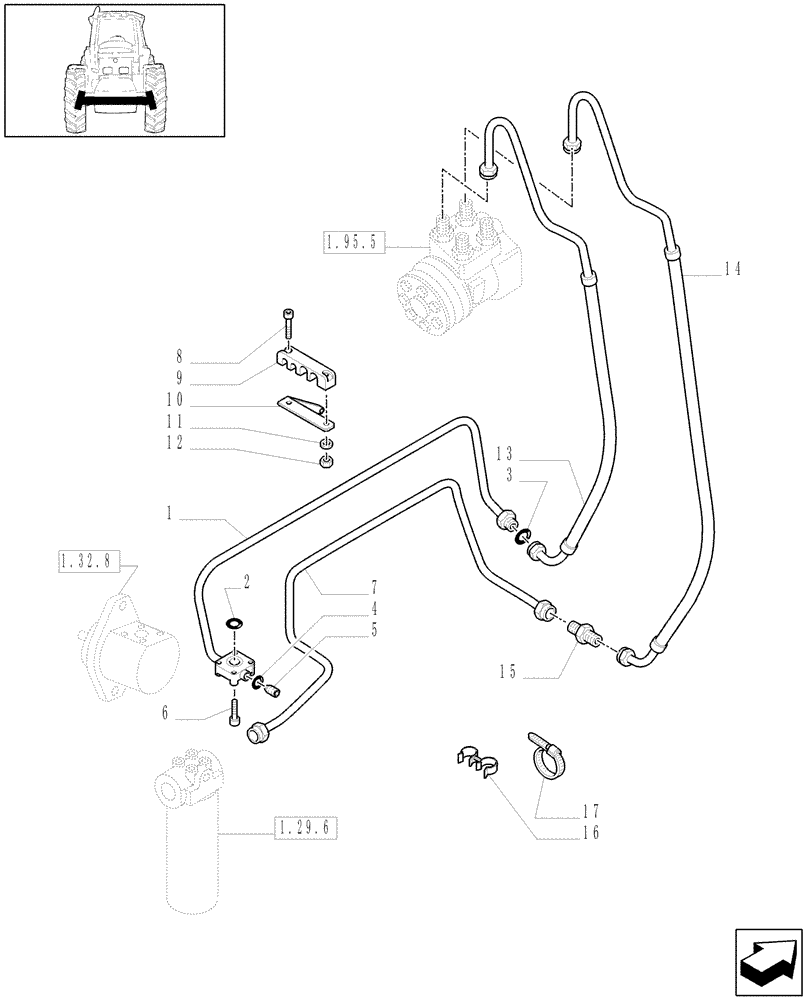

Запчасти Case IH MAXXUM 100 (1.42.0/05[01]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR EDC AND 24X24 - POWER STEERING PIPES - C6533 (VAR.330824) (04) - FRONT AXLE & STEERING

1

47123588

HYD TUBE

Incl. 2, 3

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

87367839

HYD TUBE

1шт.

8

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

9

47123528

CLAMP

1шт.

10

47123529

BRACKET

1шт.

11

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

12

16100821

NUT,M8, Cl 10

2шт.

13

82036340

HYD TUBE

Feed

1шт.

14

82036341

HYD TUBE

Return

1шт.

15

82030315

HYD CONNECTOR

1"-14UNF, 13/16"-16UNF

1шт.

16

82035888

CLIP,16mm

1шт.

17

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.
