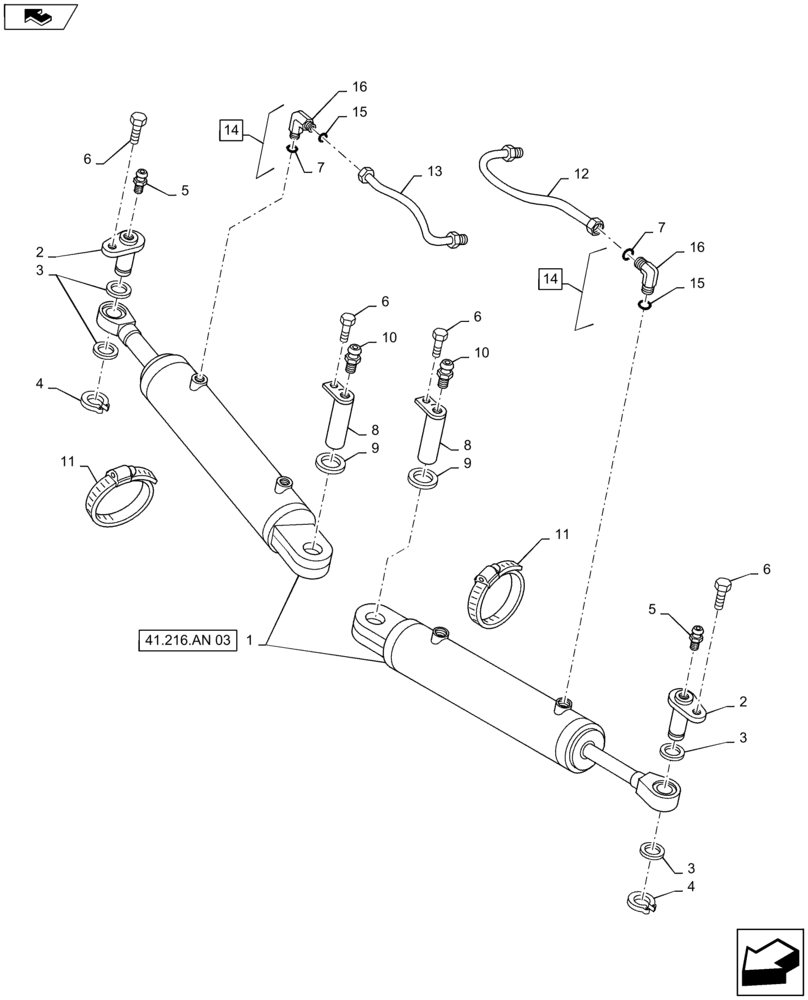

Запчасти Case IH MAXXUM 110 (41.216.AN[01]) - VAR - 330425, 330409, 330416 + STD - CL.3 FRONT AXLE - HYDRAULIC STEERING CYLINDER (41) - STEERING

1

87521950

SERVO STEERING CYL

2шт.

2

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

8

5142048

PIN,19.98mm x 107.00mm

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

12

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH

1шт.

13

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

RH

1шт.

14

47127165

90 ELBOW

Incl 7, 15, 16

2шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.
