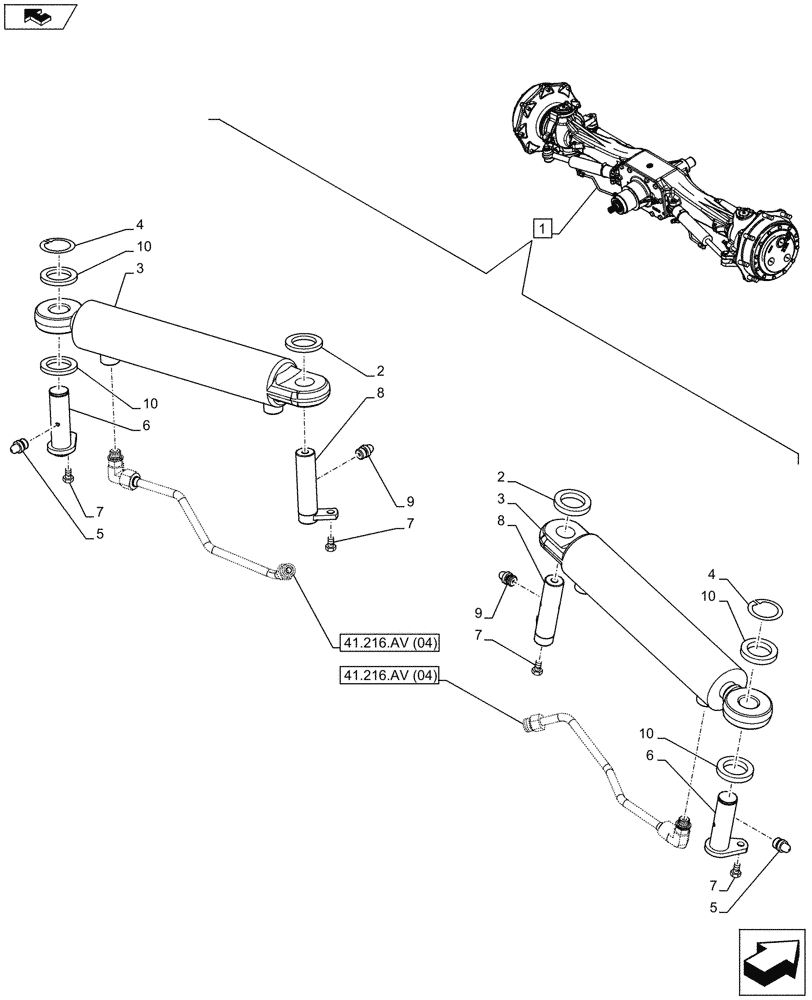

Запчасти Case IH MAXXUM 110 (41.216.AN[05]) - VAR - 300408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING CYLINDER (41) - STEERING

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 10

1шт.

See also Axle Components in Figure 25.100.AA (04), 25.100.AD (04), 25.102.AC (09), 25.102.AE (01), 25.108.AA (04), 25.108.AB (04), 25.108.AB (05), 25.108.AG (04), 25.108.AN (04), 41.106.AD (02), 41.216.AV (04), 55.047.AA (04)

1шт.

2

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

3

87546274

SERVO STEERING CYL

2шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

5171707

PIN,24.97mm OD x 91mm L

2шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

10

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.
