(90.124.AK[04]) - VAR - 330709 - SUSPENSION SEAT, W/ GARU, HEATED

Запчасти Case IH MAXXUM 110 (90.124.AK[04]) - VAR - 330709 - SUSPENSION SEAT, W/ GARU, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

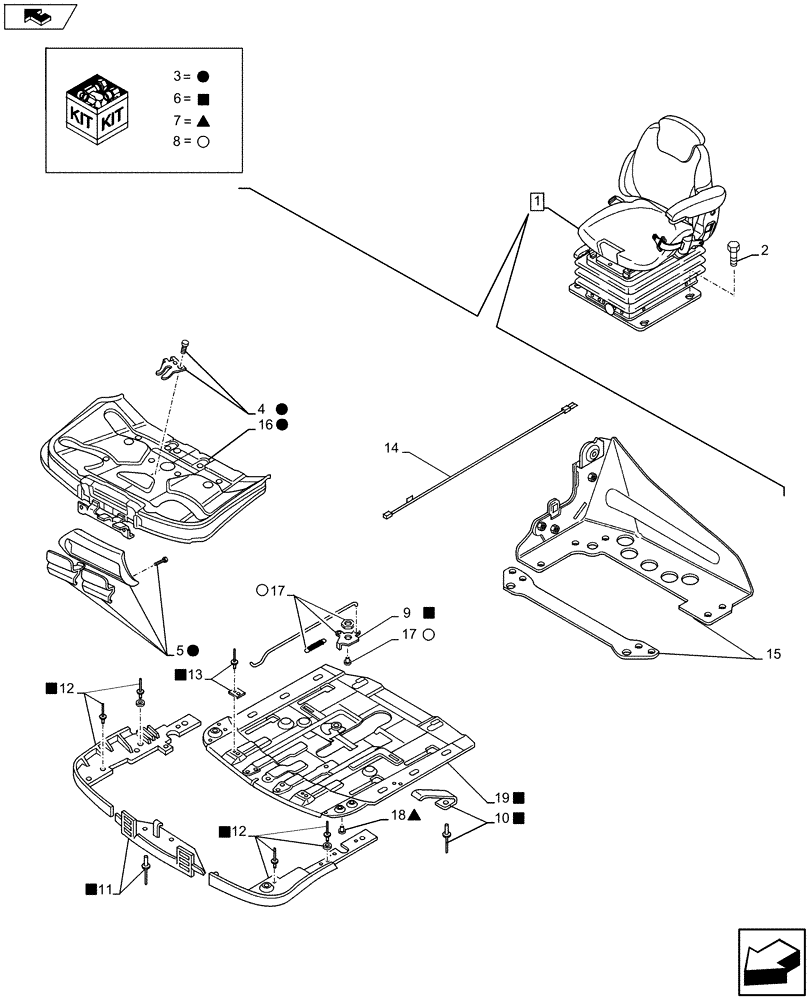

Схема запчастей Case IH MAXXUM 110 - (90.124.AK[04]) - VAR - 330709 - SUSPENSION SEAT, W/ GARU, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
18
9
11
6
6
4
16
12
17
12
10
home
17
7
8
6
1
6
19
3
3
6
6
15
6
6
5
8
3
13
2
14
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486990

SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M8 X 20 RND WSHR-HD TORX 8.8 POL

4шт.

3

84191153

ADJUSTER

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

ASSY, Incl 7

1шт.

7

84191202

SET OF PARTS

1шт.

8

84191203

CONTROL LEVER

1шт.

9

345775A1

LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

84191178

SET OF PARTS

1шт.

14

84191190

WIRE HARNESS

1шт.

15

84191195

SUPPORT

1шт.

16

NSS

NOT SOLD SEPARAT

Seat Angle ADJ., Incl in 3

1шт.

17

NSS

NOT SOLD SEPARAT

Service Part, Incl in 8

1шт.

18

NSS

NOT SOLD SEPARAT

Service Part, Incl in 7

1шт.

19

NSS

NOT SOLD SEPARAT

Depth Adjustment, Incl in 7

1шт.
