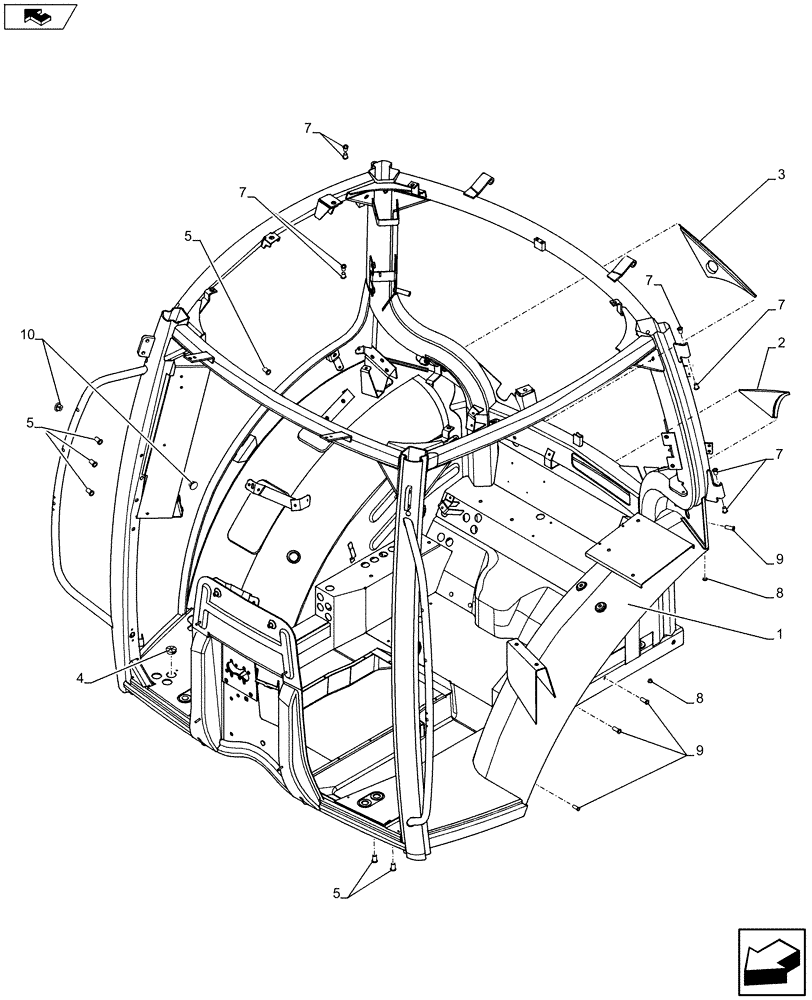

Запчасти Case IH MAXXUM 110 (90.150.AB[02]) - VAR - 331619, 335937 - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47380795

CAB BODY

1шт.

2

82036800

PLUG

1шт.

3

82036801

PLUG

1шт.

4

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

5

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

6

84214045

RIVET,Flat, M10 OD x 25.75mm L

5шт.

7

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

8шт.

8

82003283

PLUG,10.5mm OD

6шт.

9

82024992

RIVET,Flng, 11mm OD x 19.5mm L

15шт.

10

81865132

PLUG,11.20mm

2шт.
