(1.92.5/03[03A]) - WIDE REAR FENDERS WITH EXTENSIONS - EXTENSIONS (VAR.330519-331519) - D7076

Запчасти Case IH MAXXUM 110 (1.92.5/03[03A]) - WIDE REAR FENDERS WITH EXTENSIONS - EXTENSIONS (VAR.330519-331519) - D7076 (10) - OPERATORS PLATFORM/CAB

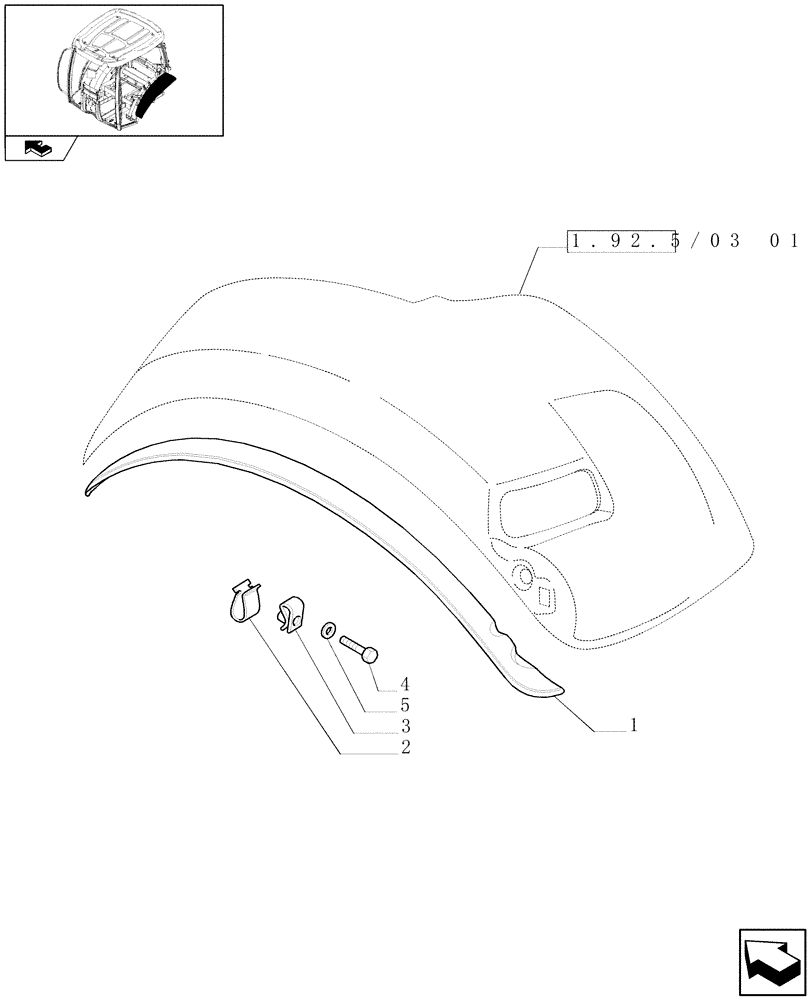

Схема запчастей Case IH MAXXUM 110 - (1.92.5/03[03A]) - WIDE REAR FENDERS WITH EXTENSIONS - EXTENSIONS (VAR.330519-331519) - D7076 (10) - OPERATORS PLATFORM/CAB
home
1.92.5/03 01
2
4
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349866

FENDER EXTENSION

LH

1шт.

1

84349867

FENDER EXTENSION

RH

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

14шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

8шт.

4

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

8шт.

5

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

16шт.
