(1.75.0[06]) - TRANSMISSION 24X24 HI-LO ENGAGEMENT CONTROL VALVE SWITCHES AND SOLENOID VALVES (STD + VAR.330282)

Запчасти Case IH MAXXUM 110 (1.75.0[06]) - TRANSMISSION 24X24 HI-LO ENGAGEMENT CONTROL VALVE SWITCHES AND SOLENOID VALVES (STD + VAR.330282) (06) - ELECTRICAL SYSTEMS

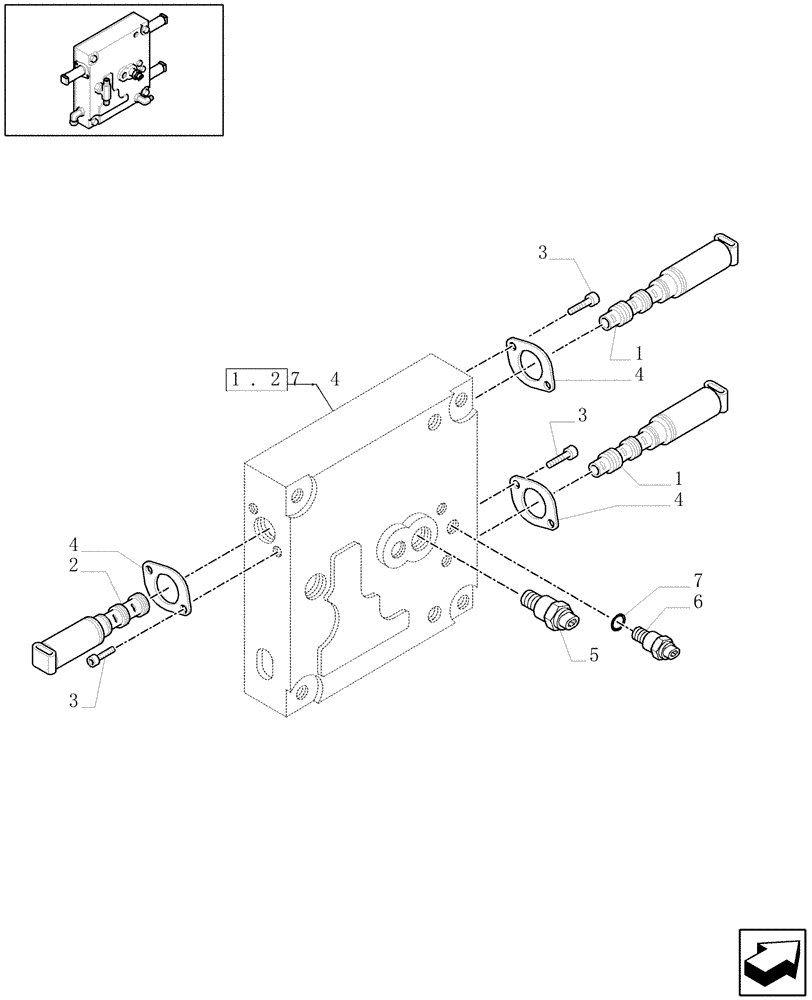

Схема запчастей Case IH MAXXUM 110 - (1.75.0[06]) - TRANSMISSION 24X24 HI-LO ENGAGEMENT CONTROL VALVE SWITCHES AND SOLENOID VALVES (STD + VAR.330282) (06) - ELECTRICAL SYSTEMS
7
3
1.27.4
5
3
1
4
4
1
6
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5196873

SOLENOID VALVE

132MM

2шт.

Hi-Lo Clutch Control

1шт.

2

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

113.5MM, Black Connectors

1шт.

Hi-Lo Dump Control

1шт.

3

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

6шт.

4

5194826

BRACKET

3шт.

5

82028133

SENSOR,3/8"-18

1шт.

Transmission Temperature

1шт.

6

82020683

SWITCH ASSY

1шт.

1/2 Synchro Neutral Position

1шт.

7

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8" Tube OD

1шт.
