(90.150.BI[01]) - VAR - 331659 + STD - CAB SUPPORTS WITHOUT SUSPENSIONS

Запчасти Case IH MAXXUM 115 (90.150.BI[01]) - VAR - 331659 + STD - CAB SUPPORTS WITHOUT SUSPENSIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

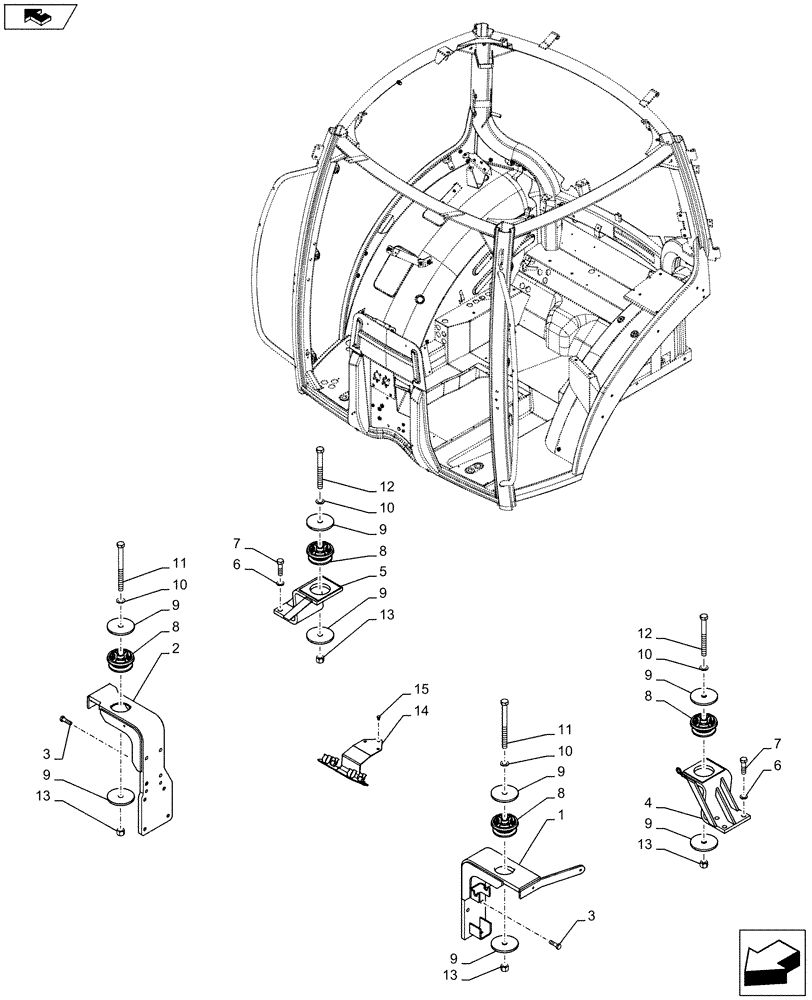

Схема запчастей Case IH MAXXUM 115 - (90.150.BI[01]) - VAR - 331659 + STD - CAB SUPPORTS WITHOUT SUSPENSIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
9
11
12
10
8
15
13
10
13
home
11
9
6
3
8
1
13
7
9
9
9
5
9
14
12
8
10
2
7
10
4
9
6
9
3
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84535396

SUPPORT

LH

1шт.

2

84535391

SUPPORT

RH

1шт.

3

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

8шт.

4

84535499

SUPPORT

LH

1шт.

5

84535384

SUPPORT

RH

1шт.

6

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

7

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

8шт.

8

83983548

ISOLATOR,120mm OD x 64mm L

4шт.

9

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

8шт.

10

14497101

WASHER,M20 x 37 x 3

4шт.

11

15991431

BOLT,Hex, M20 x 1.5 x 220mm, Cl 10.9

2шт.

12

15990531

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

13

12575121

NUT,M20 x 1.5, Cl 10

4шт.

14

84478573

PLATE

1шт.

15

16043180

BOLT,Hex, M8 x 14, Full Thd, Stainless

3шт.
