(90.102.AU[03]) - VAR - 743699, 743700 - HOOD, LATCH HOOK, INTEGRATED HYDRAULIC LIFT

Запчасти Case IH MAXXUM 115 (90.102.AU[03]) - VAR - 743699, 743700 - HOOD, LATCH HOOK, INTEGRATED HYDRAULIC LIFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

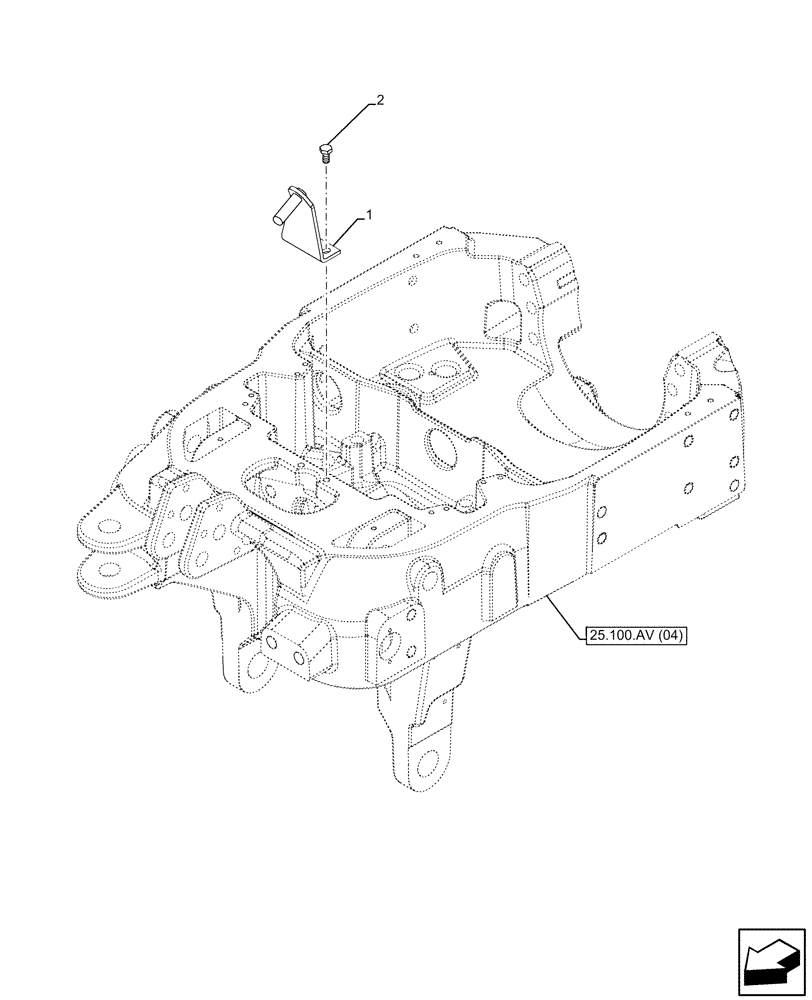

Схема запчастей Case IH MAXXUM 115 - (90.102.AU[03]) - VAR - 743699, 743700 - HOOD, LATCH HOOK, INTEGRATED HYDRAULIC LIFT (90) - PLATFORM, CAB, BODYWORK AND DECALS
25.100.av (04)
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47757098

BRACKET

Black

1шт.

2

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

2шт.
