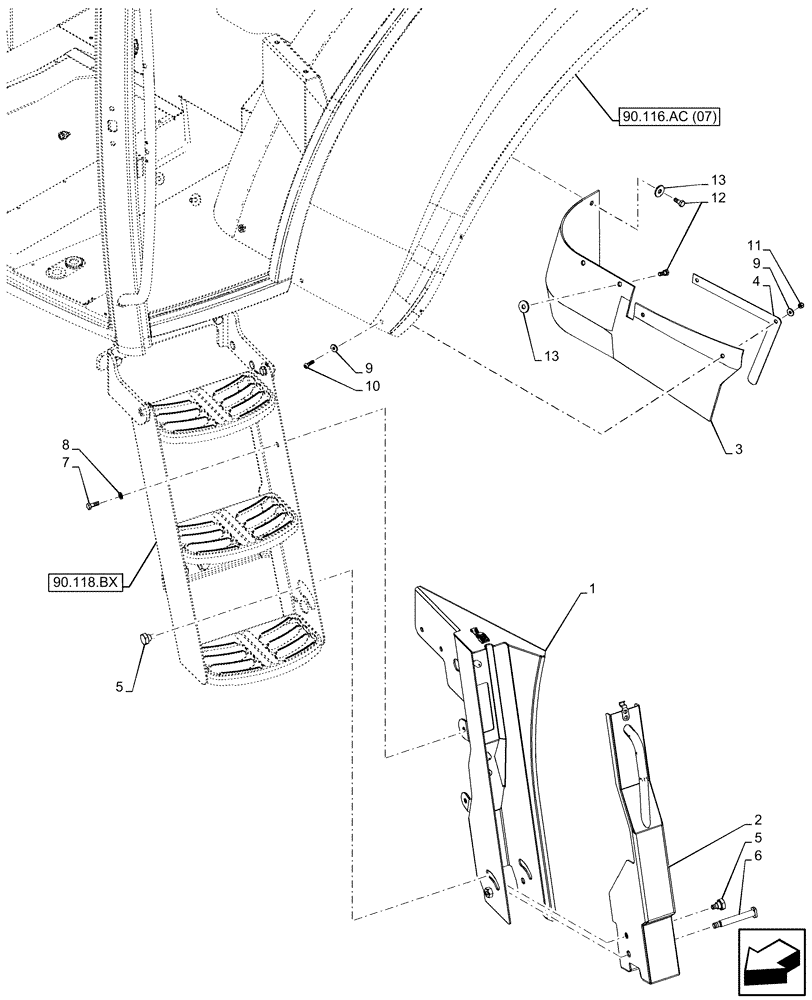

Запчасти Case IH MAXXUM 115 (90.116.AG[07]) - VAR - 743707, 743708 - MUDGUARD, LEFT SIDE, DRAWBAR - END YR 06-DEC-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47744896

GUARD

1шт.

2

47744901

GUARD

1шт.

3

87705290

MUDFLAP

1шт.

4

87705291

SUPPORT

1шт.

5

84278862

BOLT,Hex, M10 x 1.5 x 20 mm

2шт.

6

47473688

PIN

1шт.

7

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

10

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

11

12574211

NUT,M6 x 1, Cl 8

2шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

13

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

3шт.
