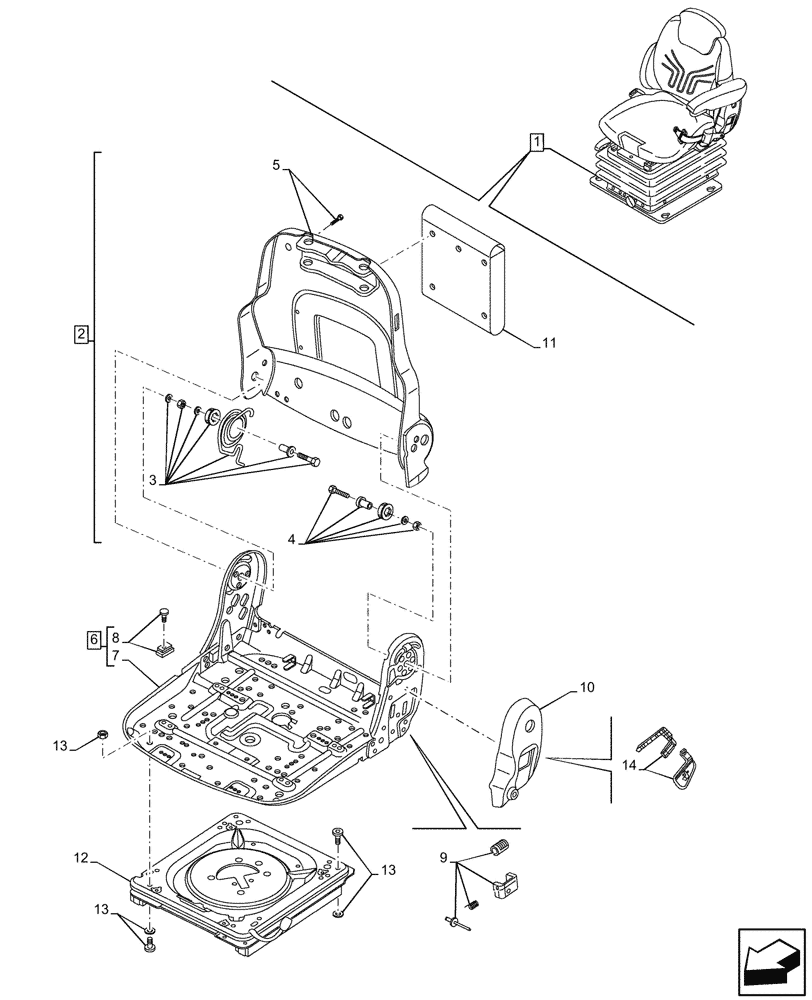

Запчасти Case IH MAXXUM 115 (90.124.AM[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87486990

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension, Belt and Up/Down Headrest, Incl 2 - 14

1шт.

See also Driver Seat Components in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AH (01), 90.124.AK (01), 90.124.AL (01), 90.124.AM (02), 90.124.AN (01), 90.124.AQ (01), 90.151.AD (01)

1шт.

2

84191121

BACKREST

ASSY, Incl 3 - 5

1шт.

3

84191131

SET OF PARTS

1шт.

4

84191196

SET OF PARTS

1шт.

5

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

6

84191188

REPAIR KIT

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 6

1шт.

8

84191178

SET OF PARTS

1шт.

9

82034946

SERVICE KIT

1шт.

10

87331931

COVER

LH

1шт.

11

47124555

BRIEF CASE

1шт.

12

84191192

SEAT SUPPORT

1шт.

13

84191194

MOUNTING PARTS

1шт.

Include also Small Parts in Figure 90.124.AL (01), 90.151.AD (01)

1шт.

14

82034960

LEVER

ASSY, Incl 18, 19

1шт.
