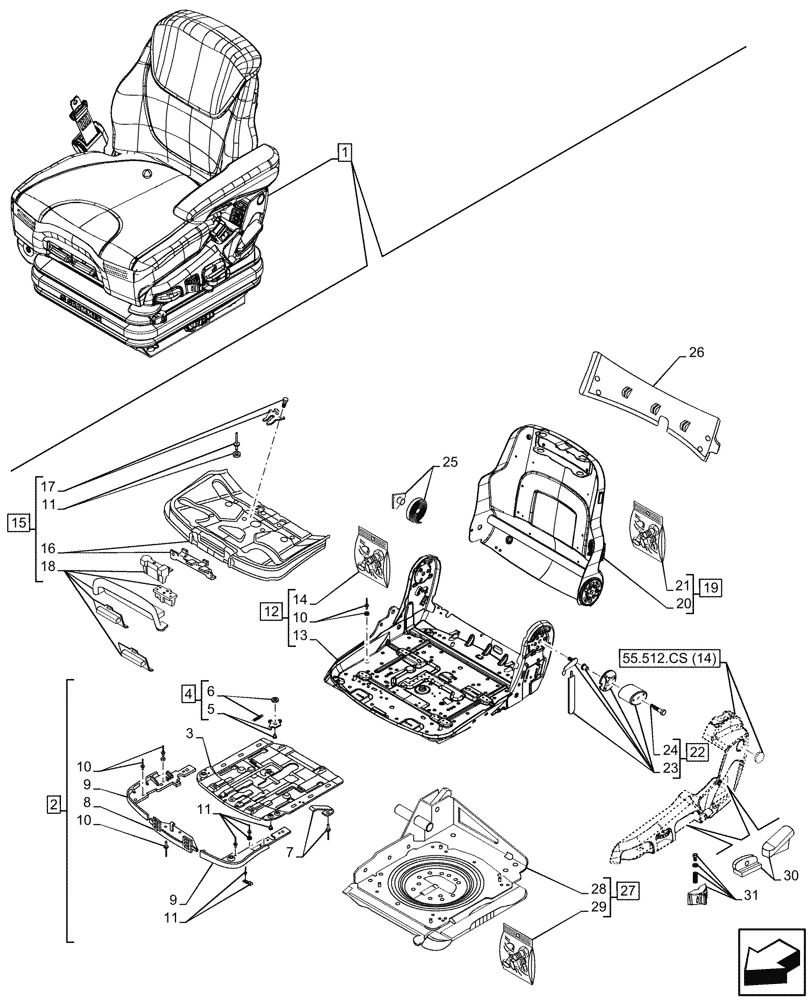

Запчасти Case IH MAXXUM 115 (90.124.AM[11]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Active Leather Comfort Pack EHR, Incl 2 - 31

1шт.

See also Driver Seat Components in Figure 55.512.CQ (07), 55.512.CS (14), 90.124.AH (07), 90.124.AN (07), 90.151.AD (07)

1шт.

2

84302186

SEAT

ASSY, Incl 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Incl in 2

1шт.

4

345775A1

LEVER

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

6

84191203

CONTROL LEVER

1шт.

7

84191175

SEAT PLATE

1шт.

8

1-34-751-728

COVER

1шт.

9

1-34-751-727

COVER

1шт.

10

84191178

SET OF PARTS

1шт.

11

84191202

SET OF PARTS

1шт.

12

47897086

PAN

ASSY, Incl 10, 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Seat Pan, Incl in 12

1шт.

14

47897074

SERVICE KIT

1шт.

15

47897080

SERVICE KIT

ASSY, Incl 11, 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Angle Seat Adj, Incl in 15

1шт.

17

1-34-751-739

FIXING PLATE

1шт.

18

47897075

HANDLE

1шт.

19

47897076

BACKREST

ASSY, Incl 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Backrest, Incl 19

1шт.

21

47540083

PLUG

1шт.

22

47897084

ADJUSTER

ASSY, Incl 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Angle Backrest Adj, Incl in 22

1шт.

24

47897077

SERVICE KIT

1шт.

25

84255313

KIT

1шт.

26

47897085

COVER ASSY

1шт.

27

47897034

MODULE

ASSY, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Comfort Module, Incl in 27

1шт.

29

47897033

SERVICE KIT

1шт.

30

47912786

HANDLE

1шт.

31

47897056

BOARD

1шт.
