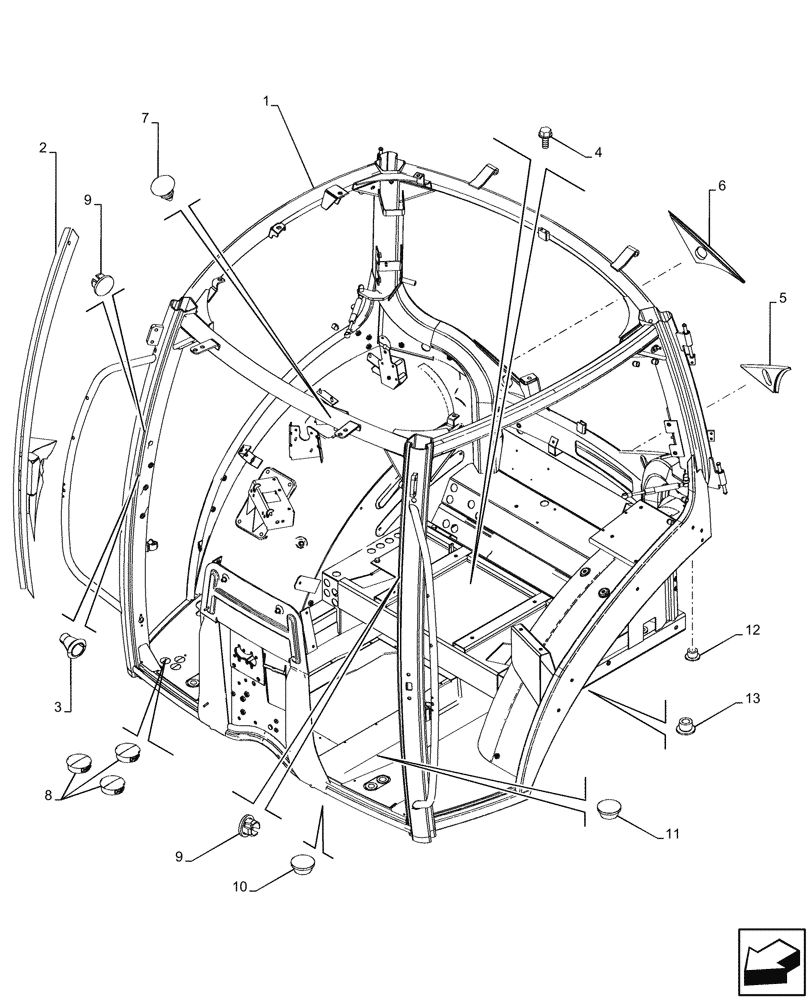

Запчасти Case IH MAXXUM 115 (90.150.AC[03]) - VAR - 391610 - CAB FRAME, GARU ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47721818

CAB

1шт.

2

84195950

SUPPORT

1шт.

3

87341141

PLUG

3шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

82036800

PLUG

1шт.

6

82036801

PLUG

1шт.

7

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

8

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

9

81865132

PLUG,11.20mm

2шт.

10

82032838

PLUG,20.7mm ID x 25mm OD x 10.5mm Thk

2шт.

11

84234592

PLUG,M20.7 x 10.5mm

2шт.

12

82003283

PLUG,10.5mm OD

4шт.

13

82036858

COVER

4шт.
