(90.150.AJ[02]) - VAR - 758479, 758480, 758481 - CAB, SUSPENSION

Запчасти Case IH MAXXUM 115 (90.150.AJ[02]) - VAR - 758479, 758480, 758481 - CAB, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

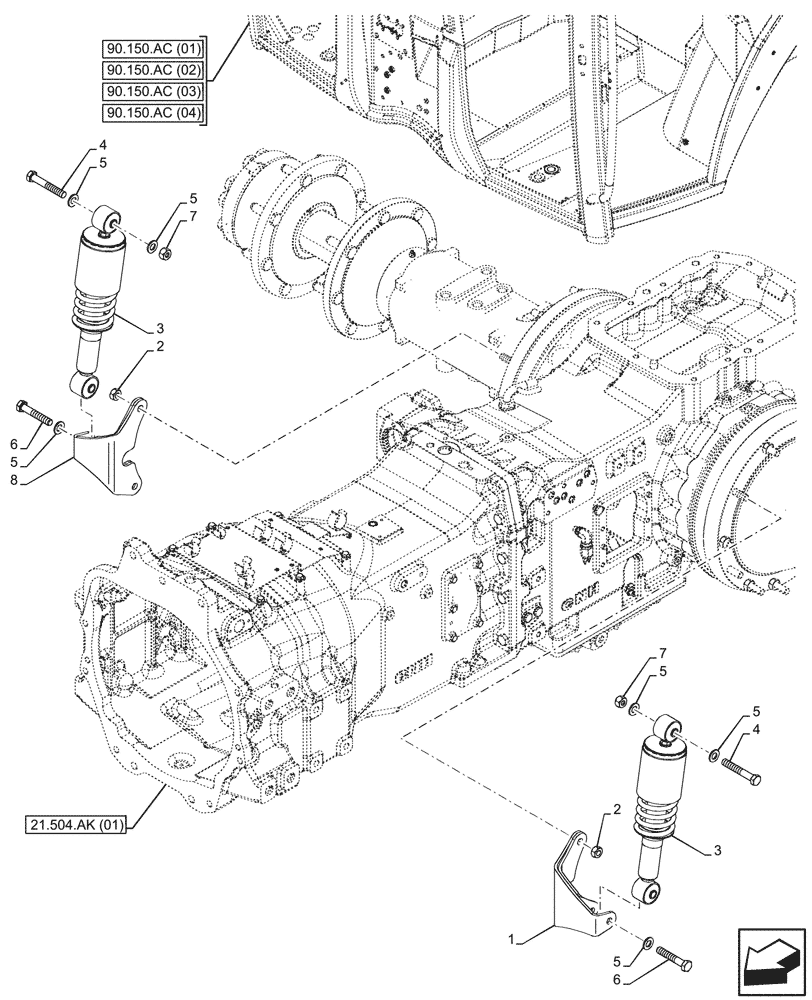

Схема запчастей Case IH MAXXUM 115 - (90.150.AJ[02]) - VAR - 758479, 758480, 758481 - CAB, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (02)
6
5
4
5
2
5
2
3
4
1
7
5
6
8
5
5
3
7
21.504.ak (01)
90.150.ac (03)
90.150.ac (01)
90.150.ac (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47518984

SUPPORT

Left

1шт.

2

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

4шт.

3

87591827

SHOCK ABSORBER

2шт.

4

86509599

BOLT,Hex, M14 x 90mm, Cl 8.8

2шт.

5

14496821

WASHER,15mm ID x 28mm OD x 2.5mm Thk

6шт.

6

11116831

BOLT,Hex, M14 x 80, 10.9

2шт.

7

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

8

47518973

SUPPORT

Right

1шт.
