(90.151.AT[02]) - VAR - 758154, 758621 - MONITOR, SUPPORT, COMPONENTS

Запчасти Case IH MAXXUM 115 (90.151.AT[02]) - VAR - 758154, 758621 - MONITOR, SUPPORT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

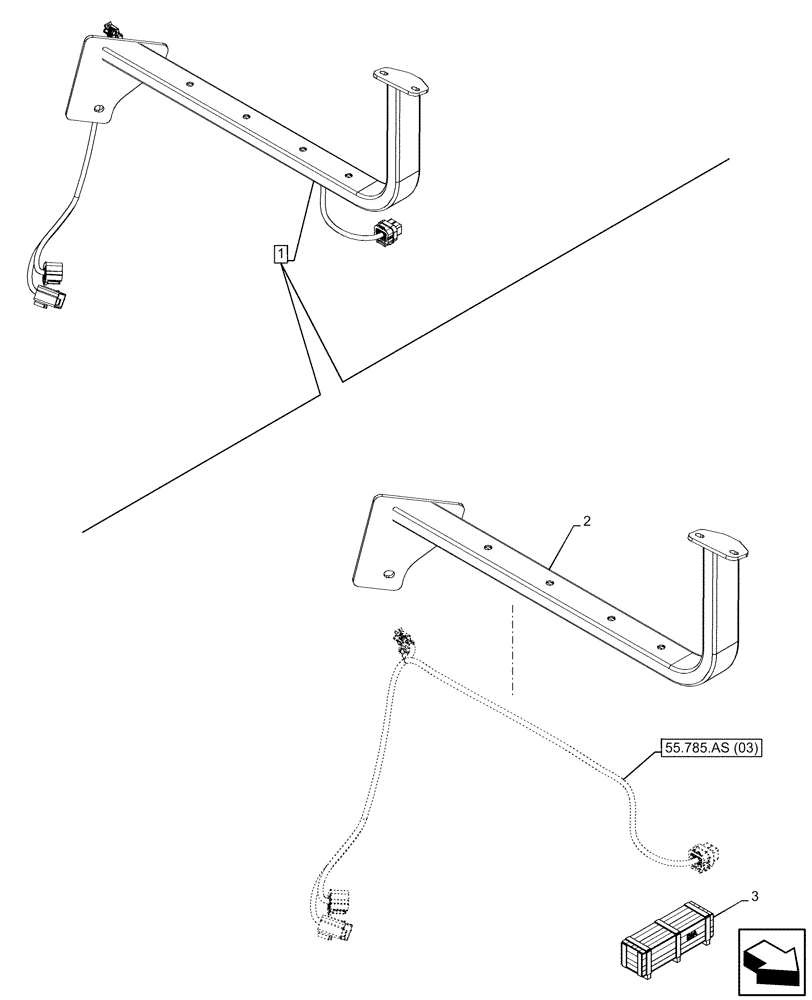

Схема запчастей Case IH MAXXUM 115 - (90.151.AT[02]) - VAR - 758154, 758621 - MONITOR, SUPPORT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.785.as (03)
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84361958

HOLDER

ASSY, Incl 2

1шт.

See also Figure 55.785.AS (03)

1шт.

2

84340967

SUPPORT

1шт.

3

719343014

DIA KIT, TRACTOR

Bracket and harness for Installation Display, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

710686024

DIA KIT, TRACTOR

Bracket for Mounting Equipment Monitor, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
