(90.160.BI[01]) - VAR - 390665, 758153 - PILLAR, TRIM, RH

Запчасти Case IH MAXXUM 115 (90.160.BI[01]) - VAR - 390665, 758153 - PILLAR, TRIM, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

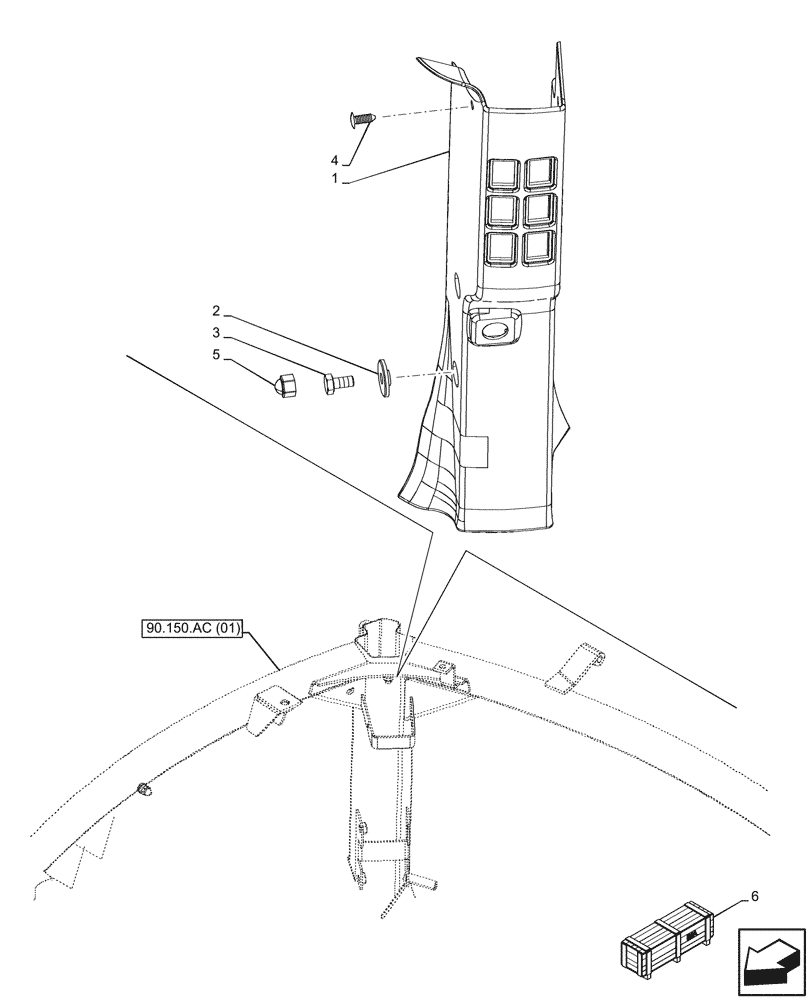

Схема запчастей Case IH MAXXUM 115 - (90.160.BI[01]) - VAR - 390665, 758153 - PILLAR, TRIM, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
3
1
6
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47382947

COVER

RH

1шт.

2

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

4

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

5

82012814

CAP,M10

2шт.

6

719343014

DIA KIT, TRACTOR

Bracket and harness for Installation Display, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
