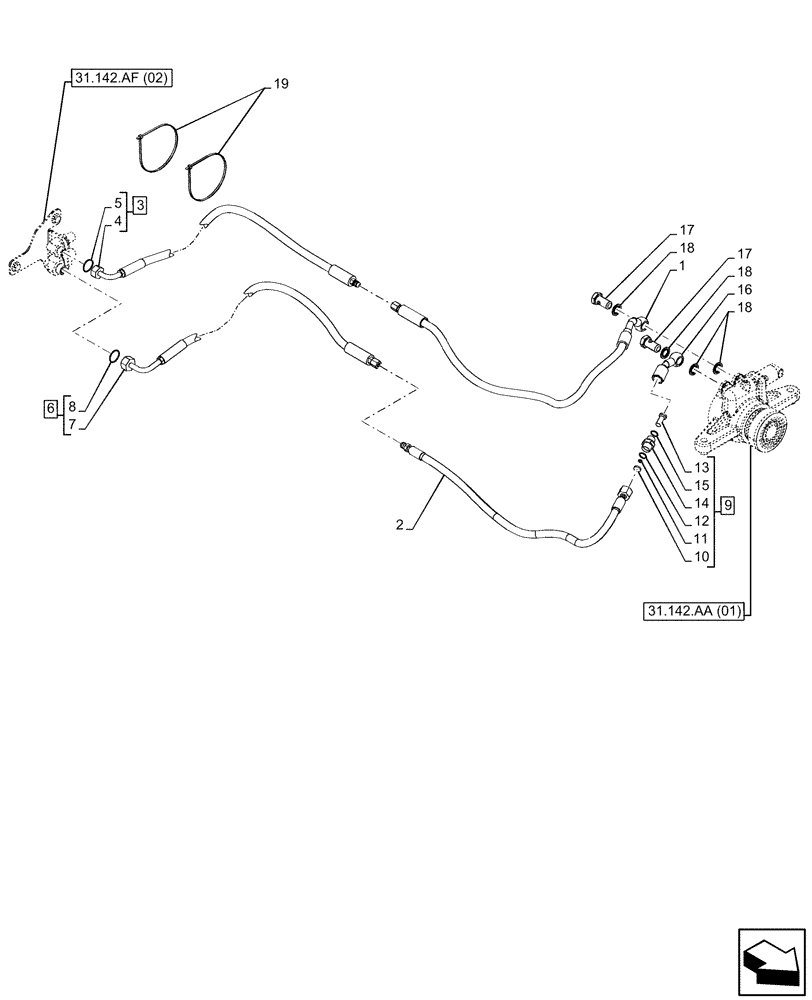

Запчасти Case IH MAXXUM 115 (31.142.AF[01]) - VAR - 743700 - FRONT PTO W/ 6 SPLINES, LINE (31) - IMPLEMENT POWER TAKE OFF

1

47439014

FLEXIBLE HOSE,6.35mm ID x 736mm L, SAE 100R2

from Front Brake Valve

1шт.

2

87622442

FLEXIBLE HOSE,6.40 mm ID x 700.00 mm, SAE 100R2

to Front Brake Valve

1шт.

3

47632979

HYDRAULIC HOSE,6.3 mm ID x 1310mm L

ASSY, from Front Brake Valve, 1310mm, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

47538410

HOSE,6.35mm ID x 1240mm L, SAE 100R2

ASSY, to Front Brake Valve, 1240mm, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Hose, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

ASSY, Incl 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

Orifice, Incl in 9

1шт.

11

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

13

47126655

FILTER STRAINER

1шт.

14

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

1шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

16

47057815

TUBE

1шт.

17

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

18

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

4шт.

19

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.
