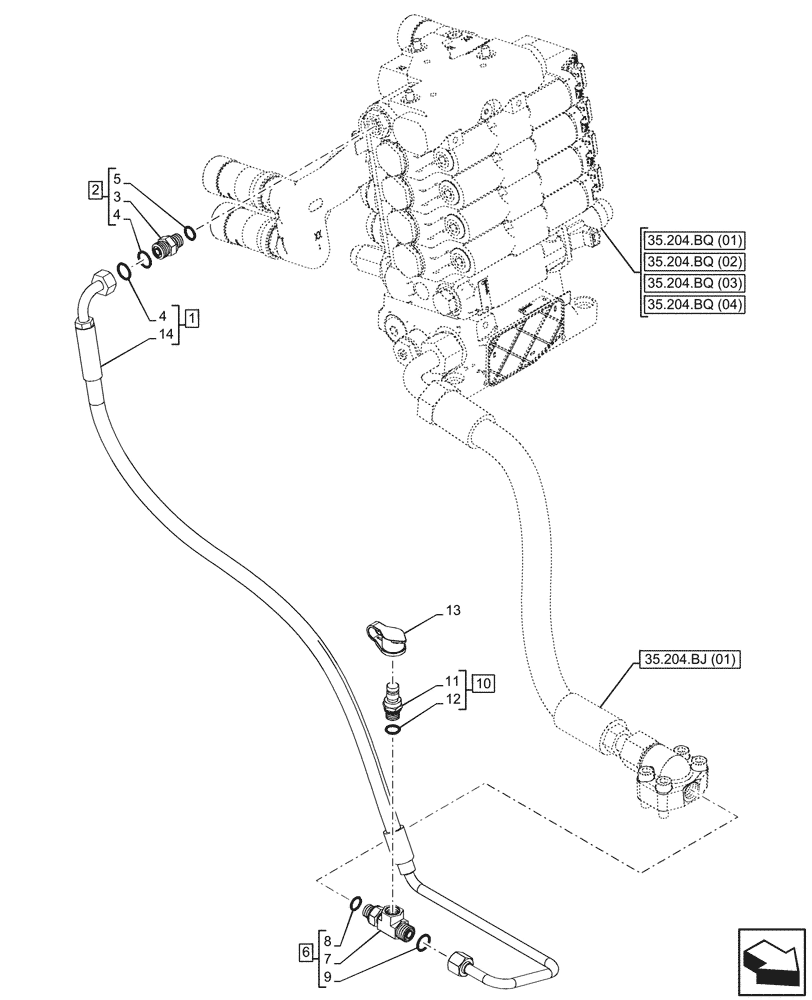

Запчасти Case IH MAXXUM 115 (35.204.BJ[03]) - VAR - 390856, 743686, 743733, 743741, 758359, 758644 - REMOTE CONTROL VALVE, W/ ELECTROHYDRAULIC ENGAGEMENT, DIAGNOSTIC COUPLER, LINE (35) - HYDRAULIC SYSTEMS

1

47614949

PIPE

ASSY, Pilot Remotes with Ele Ctr, Incl 4 (Qty 1), 14

1шт.

2

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 3, 4 (Qty 1), 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

87738179

TEE,11/16" - 16 ORFS x M14 x 1.5 ORB x M14 x 1.5 JIC

ASSY, M14, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

10

5185423

COUPLING

Assy, Male, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 10

1шт.

12

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

14

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.
