(35.204.BQ[02]) - VAR - 743686 - 3 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT

Запчасти Case IH MAXXUM 115 (35.204.BQ[02]) - VAR - 743686 - 3 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT (35) - HYDRAULIC SYSTEMS

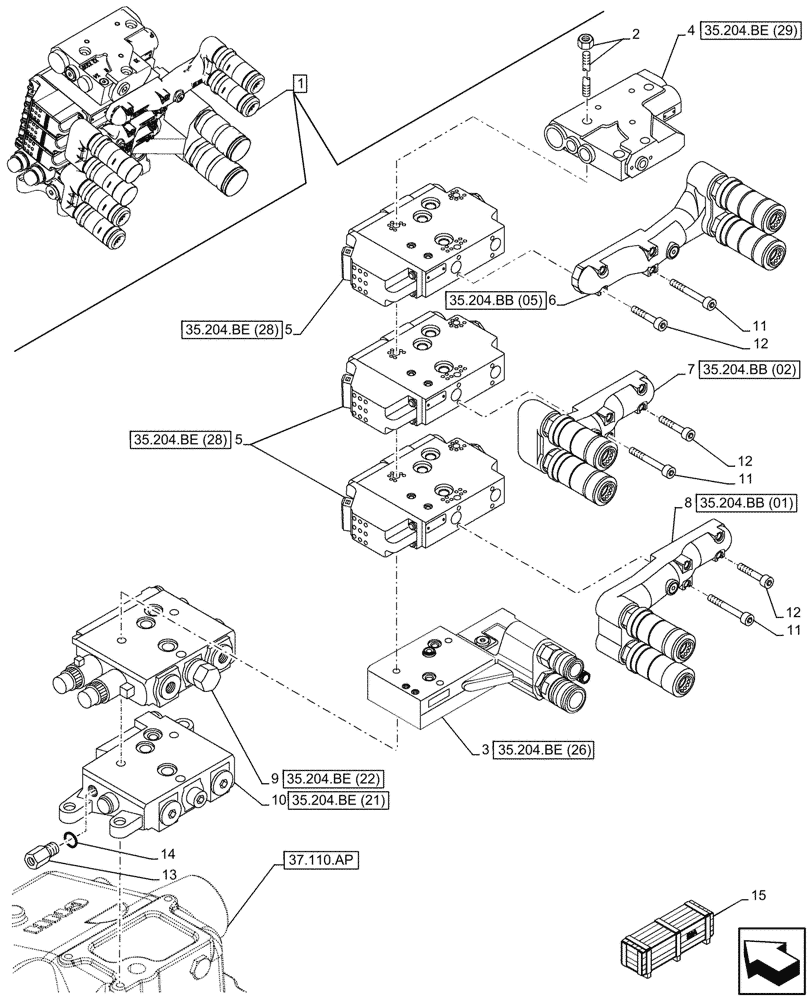

Схема запчастей Case IH MAXXUM 115 - (35.204.BQ[02]) - VAR - 743686 - 3 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT (35) - HYDRAULIC SYSTEMS
35.204.be (22)
14
12
12
2
6
3
9
10
11
11
4
5
11
5
13
12
7
8
1
15
35.204.bb (02)
35.204.bb (01)
35.204.be (26)
35.204.be (28)
35.204.be (28)
35.204.bb (05)
37.110.ap
35.204.be (29)
35.204.be (21)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47722676

DISTRIBUTOR

ASSY, Incl 2 - 15

1шт.

2

47856129

KIT

3шт.

3

47722714

HYDRAULIC VALVE

ASSY

1шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

3шт.

6

47532971

MANIFOLD

Group 4, ASSY

1шт.

7

47532950

MANIFOLD

Group 2, ASSY

1шт.

8

47532947

MANIFOLD

Group 1, ASSY

1шт.

9

84175671

VALVE SECTION

ASSY

1шт.

10

84142195

HYD VALVE SECTION

ASSY

1шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

6шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

6шт.

13

5191704

CHECK VALVE

1шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

1шт.

15

719143014

DIA KIT, TRACTOR

Hydraulic Power Beyond Slice with Flat Face Couplers, Incl 3, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
