(55.048.AK[03]) - VAR - 392195, 392204, 758413, 758415, 758581 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (35KPH) (40KPH) (16X16)

Запчасти Case IH MAXXUM 115 (55.048.AK[03]) - VAR - 392195, 392204, 758413, 758415, 758581 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (35KPH) (40KPH) (16X16) (55) - ELECTRICAL SYSTEMS

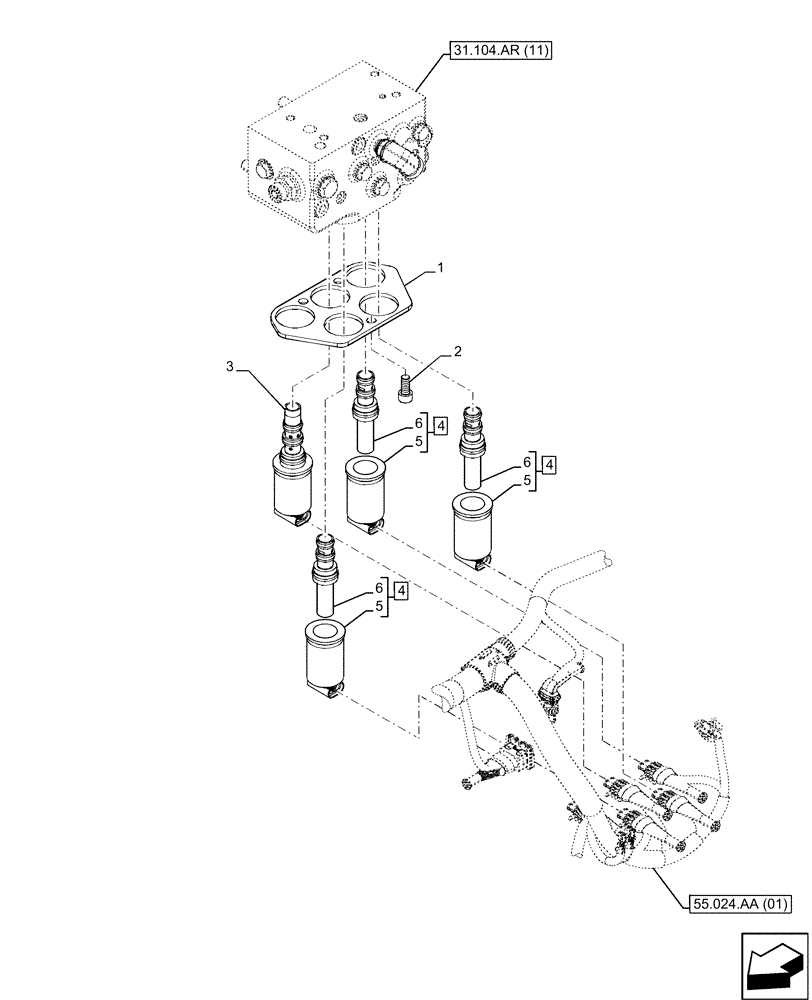

Схема запчастей Case IH MAXXUM 115 - (55.048.AK[03]) - VAR - 392195, 392204, 758413, 758415, 758581 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (35KPH) (40KPH) (16X16) (55) - ELECTRICAL SYSTEMS
55.024.aa (01)
3
5
5
6
5
1
2
4
6
4
4
6
31.104.ar (11)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5195317

PLATE

1шт.

2

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

3

87739558

SOLENOID VALVE,14W

1шт.

4

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

3шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 4

3шт.

6

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

3шт.
