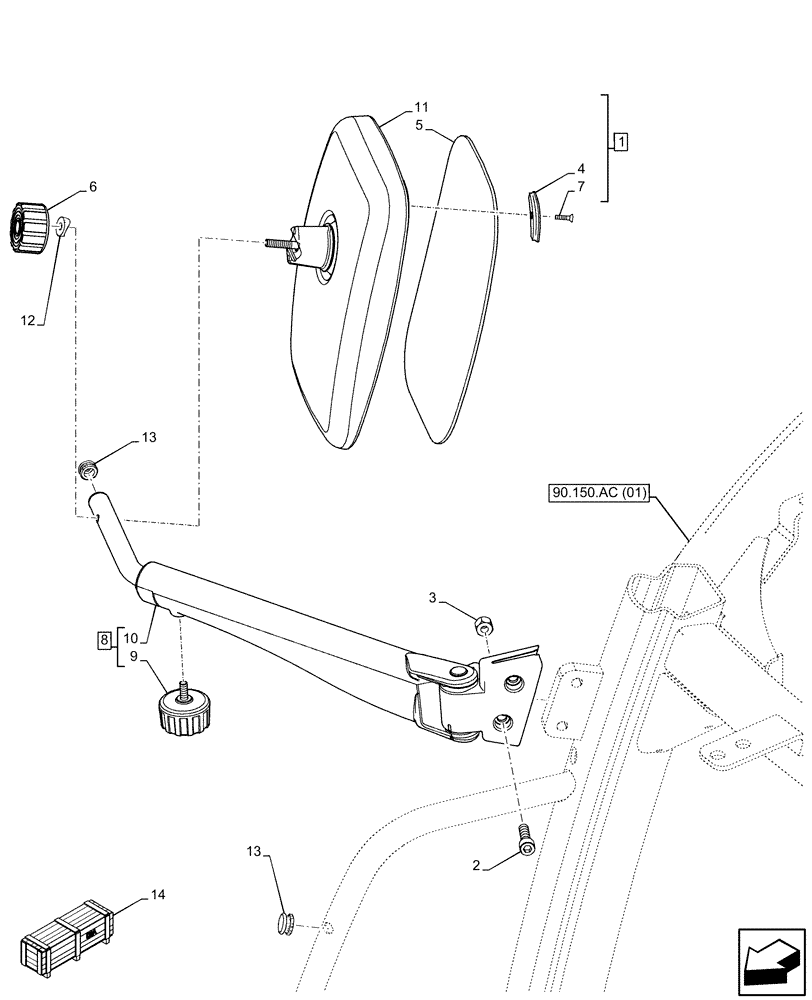

Запчасти Case IH MAXXUM 115 (90.118.BM[01]) - VAR - 390825 - REAR VIEW MIRROR, TELESCOPIC (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87339177

MIRROR ASSY.

ASSY, Incl 4 - 7, 11

1шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

4

87531094

BRACKET

4шт.

5

82035218

MIRROR,300mm x 200mm

300 x 200

1шт.

6

82016257

KNOB

1шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

87314381

MIRROR ARM

ASSY, LH, Incl 9, 10

1шт.

8

84398575

MIRROR ARM

ASSY, RH, Incl 9, 10

1шт.

9

87365131

KNOB

1шт.

10

NSS

NOT SOLD SEPARAT

Telescopic Arm, Incl in 8

1шт.

11

NSS

NOT SOLD SEPARAT

Mirror Body, Incl in 1

1шт.

12

82035908

WASHER

1шт.

13

82039492

GROMMET,6mm ID x 20mm OD, Rubber

2шт.

14

718794014

DIA KIT, TRACTOR

Telescopic Mirror Arms to Convert Standard to Telescopic, Incl 2, 3, 8 - 10, 12

1шт.
