(1.92.5/04[03]) - WIDE REAR FENDERS WITH EXTENSIONS FOR SUSPENDED CAB AND 650/65 R38 TYRES - EXTENSIONS (VAR.333519) - C7076

Запчасти Case IH MAXXUM 115 (1.92.5/04[03]) - WIDE REAR FENDERS WITH EXTENSIONS FOR SUSPENDED CAB AND 650/65 R38 TYRES - EXTENSIONS (VAR.333519) - C7076 (10) - OPERATORS PLATFORM/CAB

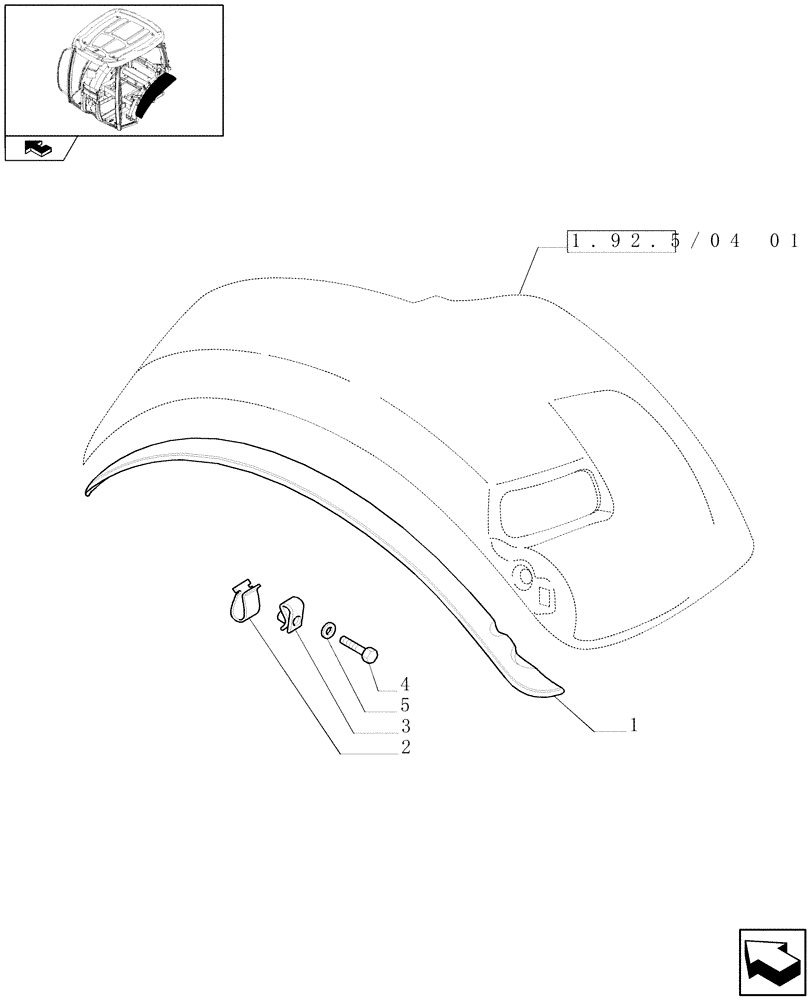

Схема запчастей Case IH MAXXUM 115 - (1.92.5/04[03]) - WIDE REAR FENDERS WITH EXTENSIONS FOR SUSPENDED CAB AND 650/65 R38 TYRES - EXTENSIONS (VAR.333519) - C7076 (10) - OPERATORS PLATFORM/CAB
4
1
2
3
home
5
1.92.5/04 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87520691

FENDER EXTENSION

LH

1шт.

1

87520692

FENDER EXTENSION

RH

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

16шт.

3

14188971

CLIP

4шт.

4

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

4шт.

5

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.
