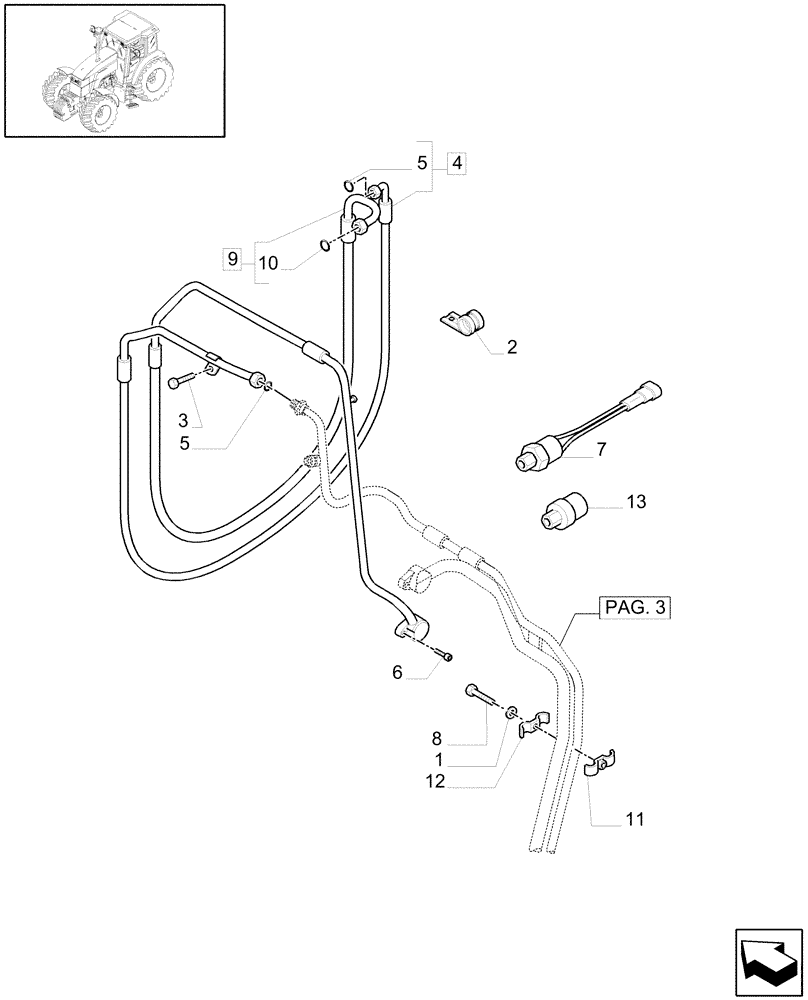

Запчасти Case IH MAXXUM 115 (1.94.3/04[04]) - AIR CONDITIONING (VAR.330641) (10) - OPERATORS PLATFORM/CAB

1

83952313

LOCK WASHER,Serr, M5

1шт.

2

87331631

CLAMP

1шт.

3

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

4

82027322

FLEXIBLE HOSE

Condensor/Drier, Incl. 5

1шт.

5

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk

1шт.

6

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

7

87305163

SWITCH, A/C HIGH PRE

High Pressure, Serial Range: -C5854

1шт.

8

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

1шт.

9

87302929

PIPE

Condensor/Compressor, Incl. 10

1шт.

10

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x .070" Thk

1шт.

11

82033450

CLAMP

1шт.

12

82036409

CLAMP BRACKET

1шт.

13

87699591

SWITCH ASSY

, Start Serial: D5854

1шт.
