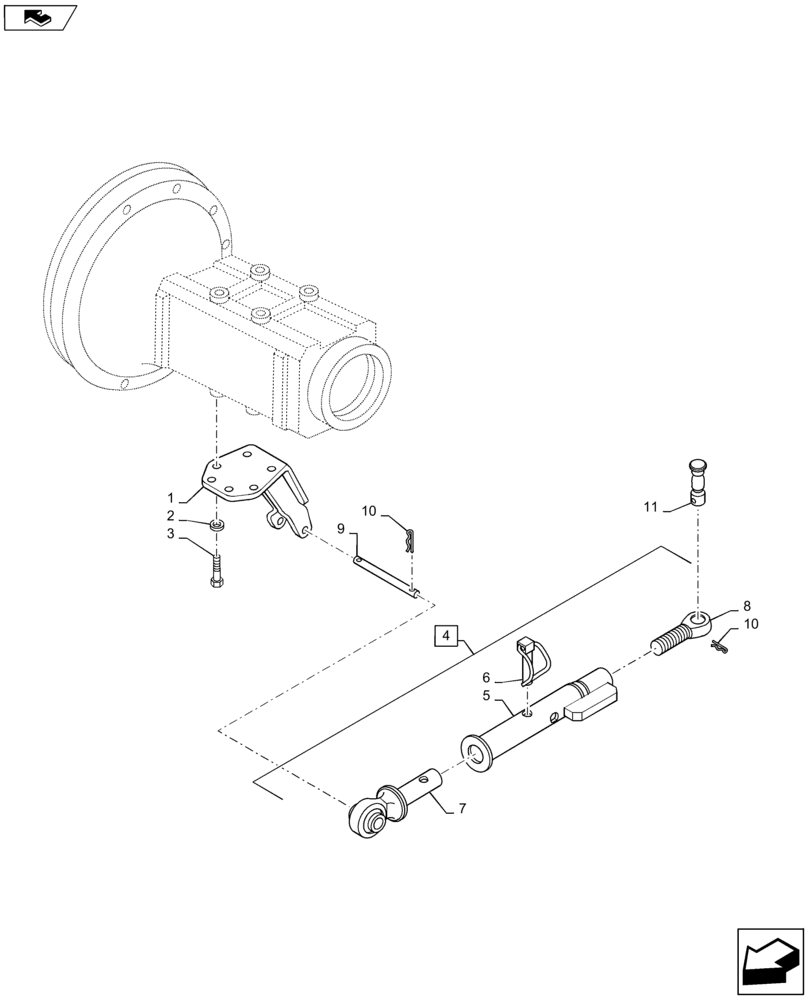

Запчасти Case IH MAXXUM 120 (39.129.AC[01]) - MECHANICAL STABILIZERS SCREW TYPE ADJUSTMENT (39) - FRAMES AND BALLASTING

1

5188925

SUPPORT

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984321

BOLT,Hex, M18 x 1.5 x 50mm, Cl 8.8

8шт.

4

5195224

STABILIZER

Incl 5 - 8

1шт.

5

5195226

ADJUSTING SLEEVE,M27 x 3

1шт.

6

5103862

LOCK PIN,16mm OD

1шт.

7

5174917

END

1шт.

8

44906325

LIFT LINK END ASSY,M27 x 3

1шт.

9

5125861

PIN,19mm OD x 105mm L

2шт.

10

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

6шт.

11

47133051

PIN,20mm OD x 59mm L

2шт.
