(88.100.37[02]) - DIA KIT - SLIDER TOW HOOK WITH FIXED COUPLING - 43MM

Запчасти Case IH MAXXUM 120 (88.100.37[02]) - DIA KIT - SLIDER TOW HOOK WITH FIXED COUPLING - 43MM (88) - ACCESSORIES

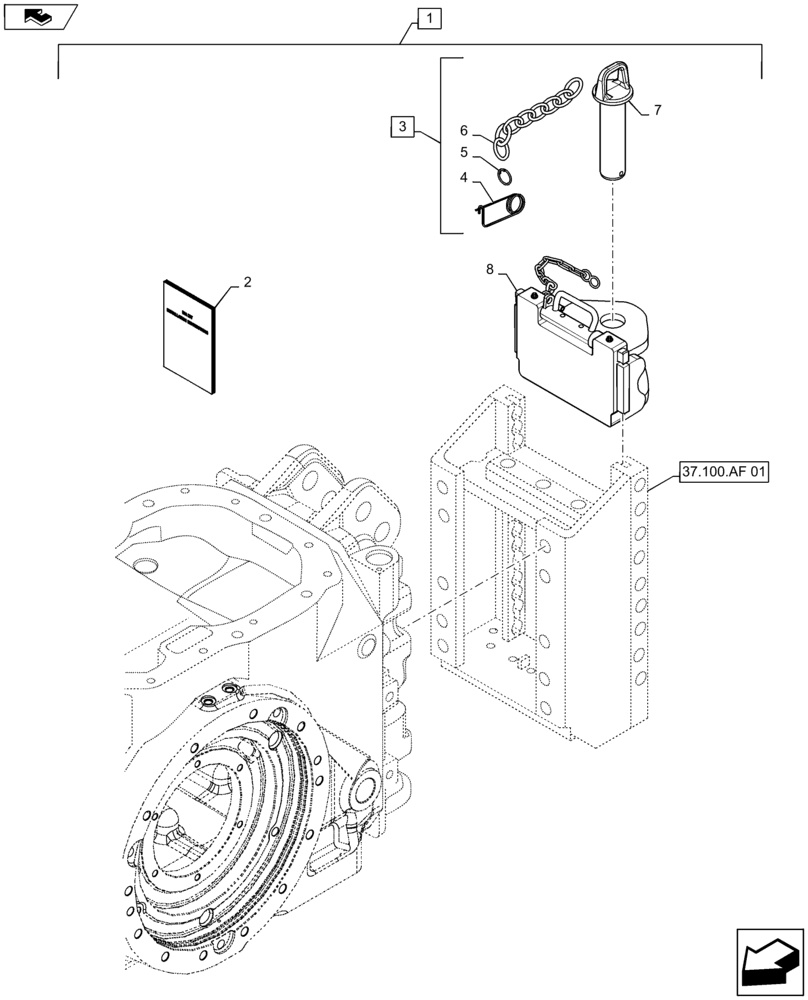

Схема запчастей Case IH MAXXUM 120 - (88.100.37[02]) - DIA KIT - SLIDER TOW HOOK WITH FIXED COUPLING - 43MM (88) - ACCESSORIES
8
3
home
5
1
7
6
37.100.af 01
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710932024

DIA KIT, TRACTOR

DIA Kit for Trailer Hitch with 43mm Dia Pin, Incl 2 - 8

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84142248

INSTRUCTION

1шт.

3

5159486

PIN

Incl 4 -7

1шт.

4

5152004

HAIR PIN COTTER,195mm L

1шт.

5

44901192

SNAP RING,25mm ID

2шт.

6

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

7

NSS

NOT SOLD SEPARAT

Pin, Incl in 3

1шт.

8

5199451

TOW HOOK

1шт.
