(90.124.AH[01]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH MAXXUM 120 (90.124.AH[01]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

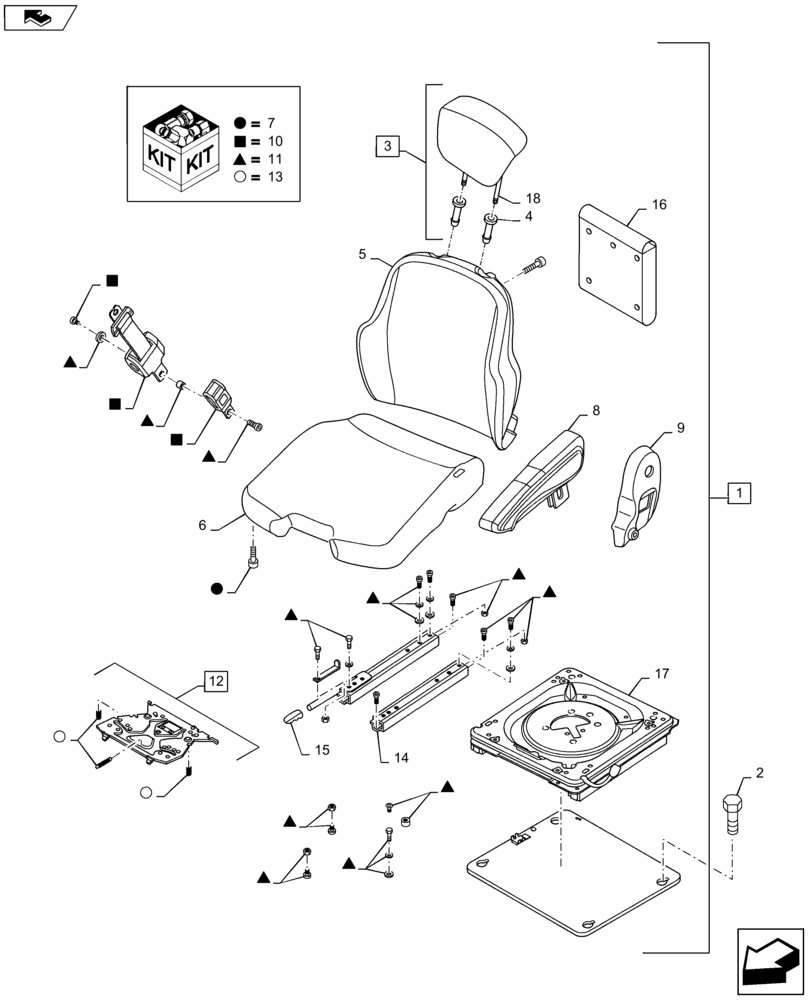

Схема запчастей Case IH MAXXUM 120 - (90.124.AH[01]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
11
13
11
7
4
9
11
3
10
10
12
13
15
5
11
14
16
13
11
8
10
7
10
11
7
11
11
home
10
13
11
11
6
11
2
11
17
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

Incl 3 - 18

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

Incl 4, 18

1шт.

4

84191112

GUIDE

1шт.

5

84172430

SEAT BACK

Incl 7

1шт.

6

84191096

SEAT CUSHION,Fabric Confetti Wheat

Incl 7

1шт.

7

84191200

SET OF PARTS

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84191194

MOUNTING PARTS

1шт.

12

84191141

PLATE

Incl 13

1шт.

13

84191201

SET OF PARTS

1шт.

14

84191191

REPAIR KIT

Adjustment Slide

1шт.

15

9971715

HANDLE

1шт.

16

47124555

BRIEF CASE

1шт.

17

82039448

PLATE

1шт.

18

NSS

NOT SOLD SEPARAT

Headrest, Incl in 3

1шт.
