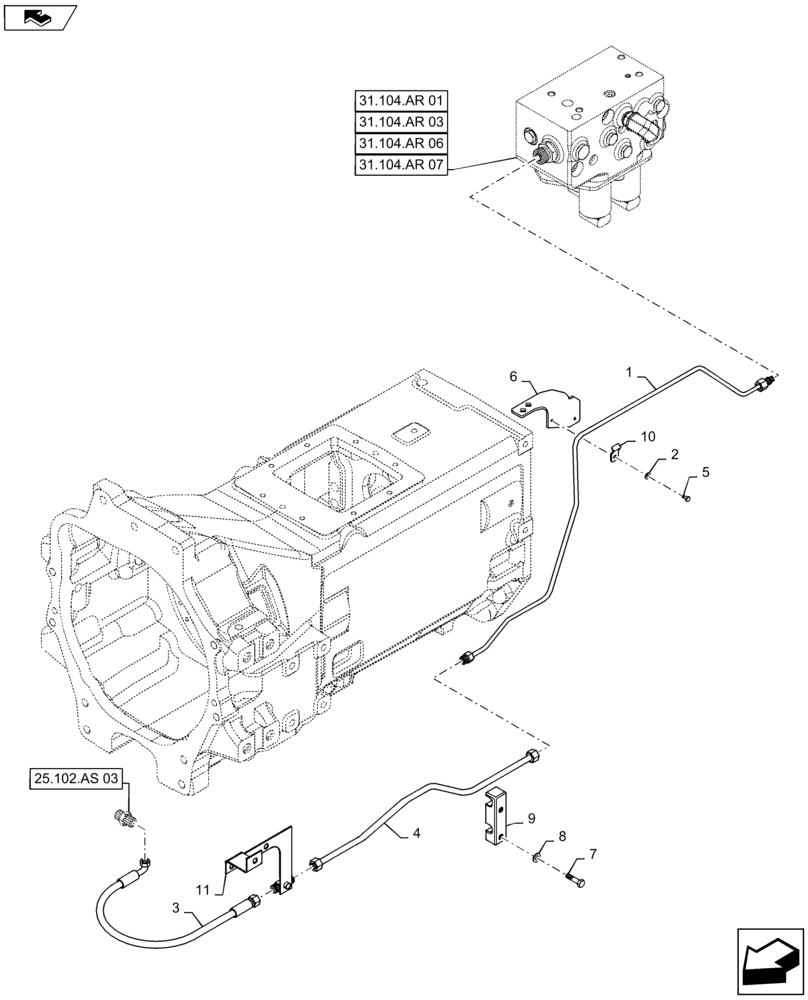

Запчасти Case IH MAXXUM 120 (25.102.AT[03]) - VAR - 330414, 330427 - DIFFERENTIAL LOCK LINES - CL.3 - 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

1

84473416

TUBE

1шт.

2

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

3

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

1шт.

4

87543759

TUBE,8 mm ID x 10 mm OD x 650, 555 mm L

Maxxum 115, 125, 140

1шт.

4

87543758

TUBE,8 mm ID x 10 mm OD x 410, 315 mm L

Maxxum 110, 120, 130

1шт.

5

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

6

84426961

BRACKET

1шт.

7

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

82029228

CLAMP,2 Hoses

1шт.

10

84332672

BRACKET

1шт.

11

87317792

SUPPORT

1шт.
