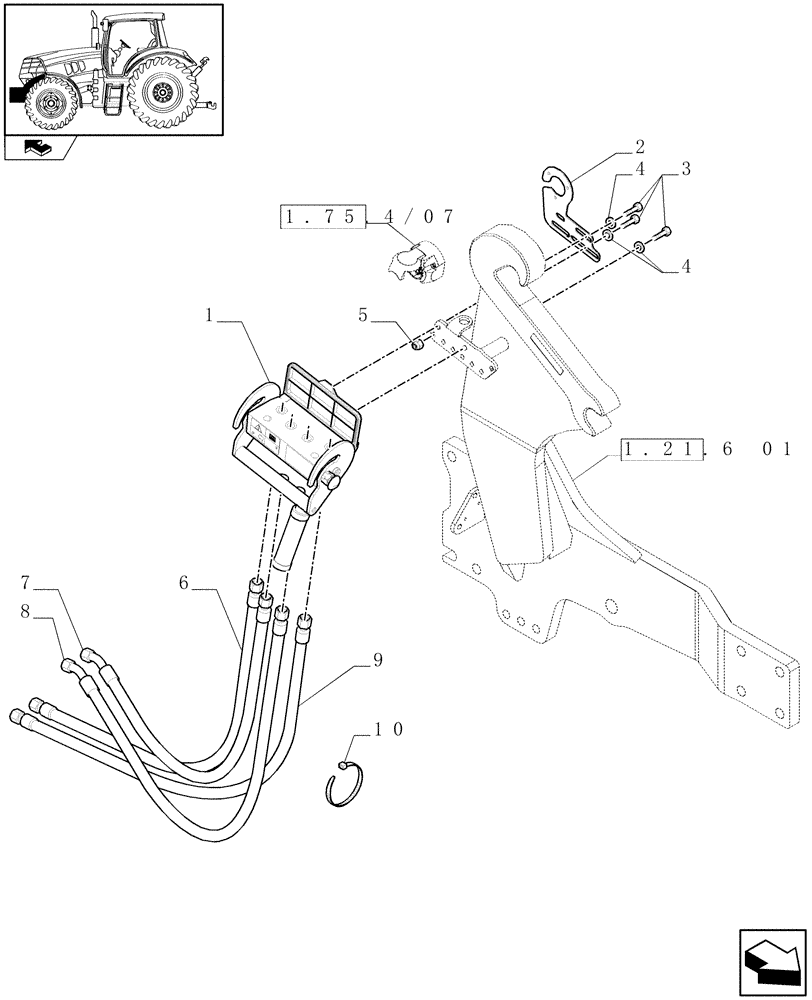

Запчасти Case IH MAXXUM 120 (1.21.6[02]) - EUROPEAN LOADER READY - FAST-FITTING CONNECTION AND PIPES (VAR.332821) (03) - TRANSMISSION

1

87733579

COUPLING

1шт.

2

87736290

BRACKET

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

4

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

6

82031013

HYDRAULIC HOSE

MMV Lower

1шт.

7

84180918

HOSE

Loader Raise

1шт.

8

84180919

HOSE

Loader Crowd

1шт.

9

82031016

FLEXIBLE HOSE,12.7mm ID x 995mm L, SAE 100R2

MMV Tip

1шт.

10

81844383

CABLE TIE

CABLE STRAP

1шт.
