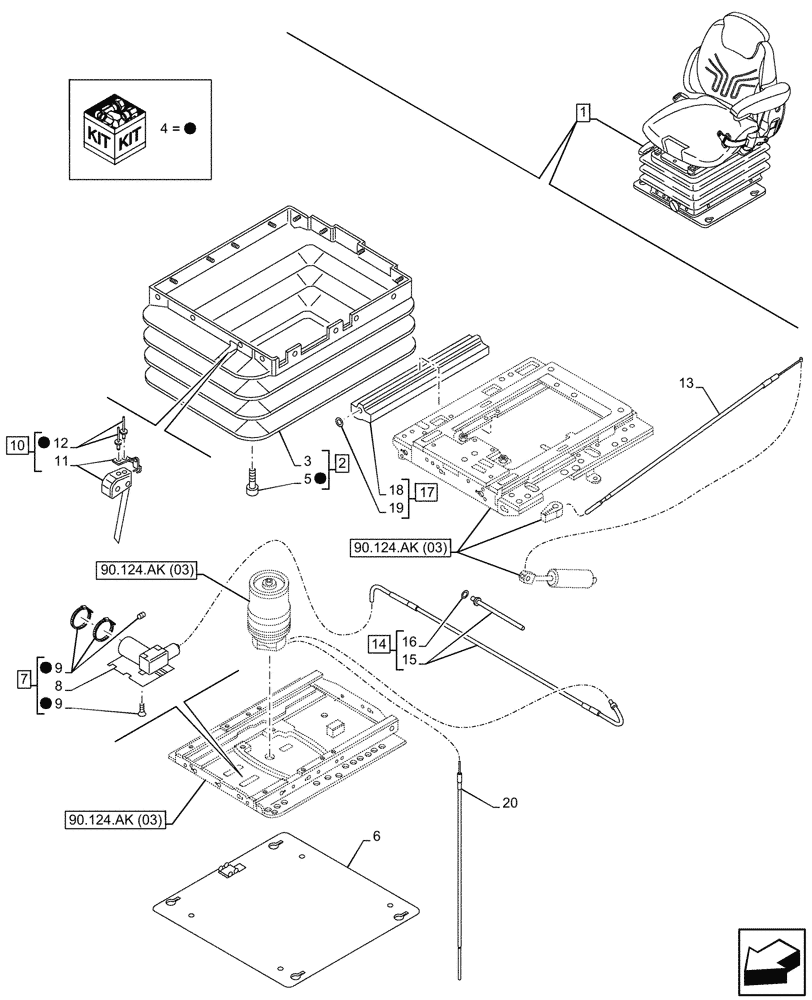

Запчасти Case IH MAXXUM 135 (90.124.AN[03]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, AIR COMPRESSOR, W/ MECHANICAL REMOTES, SPRING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 20

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (05), 90.124.AM (06), 90.124.AQ (03), 90.151.AD (03)

1шт.

2

84190978

BELLOWS

ASSY, Incl 3, 5

1шт.

3

NSS

NOT SOLD SEPARAT

Frame, Incl in 2

1шт.

4

84190975

REPAIR KIT

ASSY, Bellows, Incl 5, 9, 12

1шт.

Include also Small Parts in Figure 90.124.AK (03)

1шт.

5

84191003

REPAIR KIT

Bellows

1шт.

6

84191021

PLATE

1шт.

7

84190980

AIR COMPRESSOR

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 7

1шт.

9

84191008

REPAIR KIT

Air Compressor

1шт.

10

84190962

KIT

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Level Indicator, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Rivets, Incl in 10 and Incl in 4

1шт.

13

84190997

BOWDEN CONTROL

1шт.

14

84191079

KIT

ASSY, Driver Seat, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 14

1шт.

16

84191016

REPAIR KIT

Driver Seat

1шт.

17

84191082

SERVICE KIT

ASSY, Seat Guide, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Air Reservoir, Incl in 17

1шт.

19

84191086

REPAIR KIT

Seat Guide

1шт.

20

84191077

TUBE

1шт.
