(35.204.BS[03]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, COMPONENTS

Запчасти Case IH MAXXUM 135 (35.204.BS[03]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS

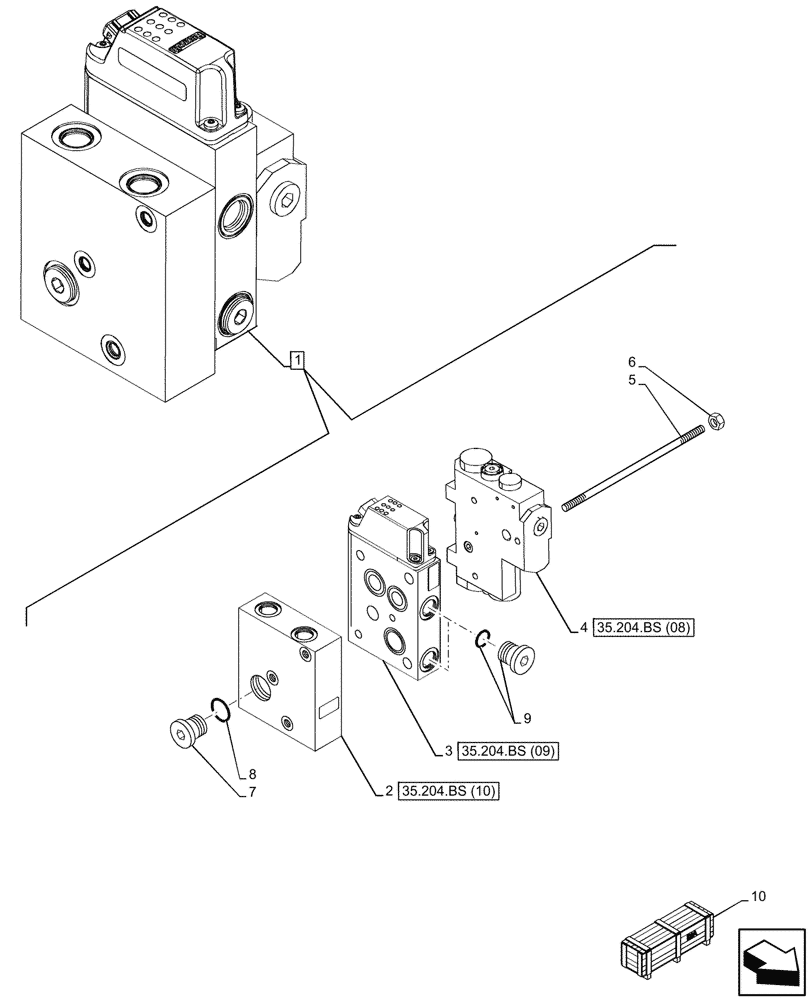

Схема запчастей Case IH MAXXUM 135 - (35.204.BS[03]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.bs (10)
7
5
10
6
7
2
9
4
8
3
8
1
35.204.bs (09)
35.204.bs (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47680947

CONTROL VALVE

ASSY, 1 EH, Incl 2 - 9

1шт.

2

84381621

VALVE SECTION

ASSY

1шт.

3

84381608

HYD VALVE SECTION

ASSY

1шт.

3

84381608R

REMAN-HYD VALVE

Reman Assy

1шт.

3

84381608C

CORE-VALVE HYD

Core Return Number

1шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

5195170

BOLT

131mm

3шт.

6

5195169

NUT,M8

3шт.

7

47129435

PLUG

1шт.

8

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

9

47554504

KIT,M5 x 18mm, Cl 10.9mm

Hydraulic Valve Section

2шт.

10

718223024

Electronic Mid Mount Valve Kit (1 Slice), W/O Joystick, Incl 1 - 9

DIA KIT, TRACTOR

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
