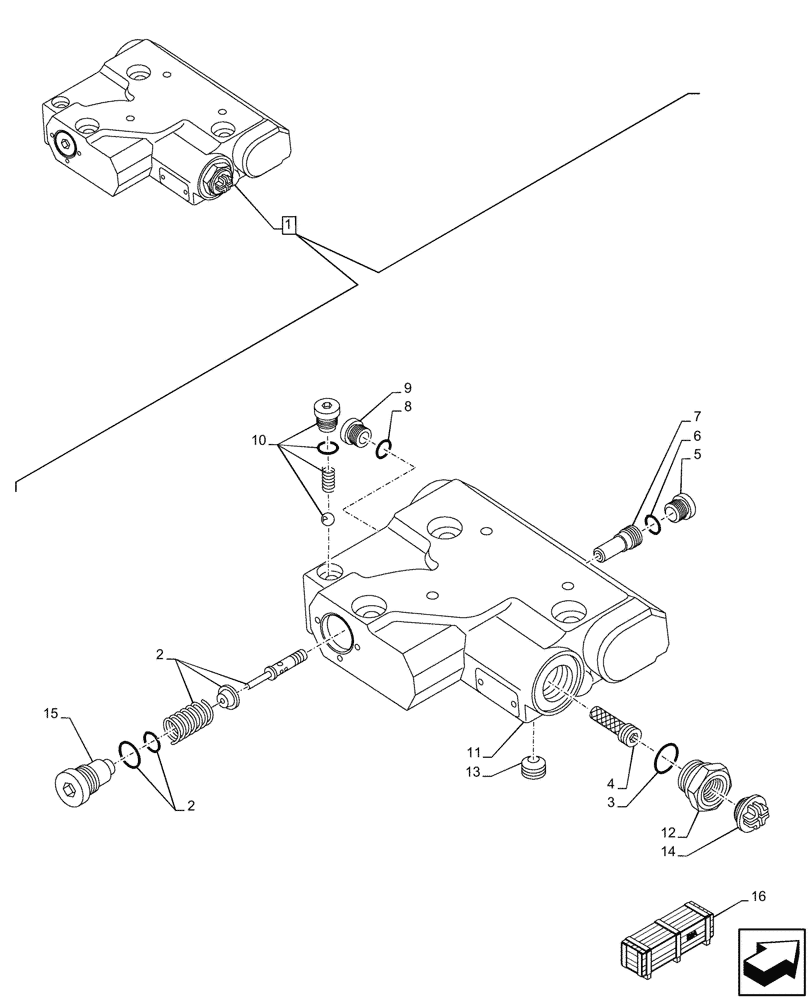

Запчасти Case IH MAXXUM 135 (35.204.BS[08]) - VAR - 743689, 743690, 758352, 758353, 758354, 758445 - MID-MOUNT CONTROL VALVE, HYD VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230200

HYD VALVE SECTION

ASSY, Incl 2 - 15

1шт.

2

84230505

KIT

Hydraulic Valve Section

1шт.

3

47129433

O-RING

1шт.

4

47129436

FILTER

1шт.

5

47129435

PLUG

1шт.

6

47129432

O-RING

1шт.

7

47129441

VALVE

1шт.

8

47129434

O-RING

1шт.

9

47129439

SCREW

1шт.

10

47129440

REPAIR KIT

Hydraulic Valve Section

1шт.

11

NSS

NOT SOLD SEPARAT

End Plate, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Reducing Fitting, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Closure Cap, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

16

718223024

Electronic Mid Mount Valve Kit (1 Slice), W/O Joystick, Incl 1 - 15

DIA KIT, TRACTOR

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718229024

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (3 Slice), W/O Joystick, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

719763104

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
