(25.102.AC[06]) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - DIFFERENTIAL CARRIER

Запчасти Case IH MAXXUM 140 (25.102.AC[06]) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

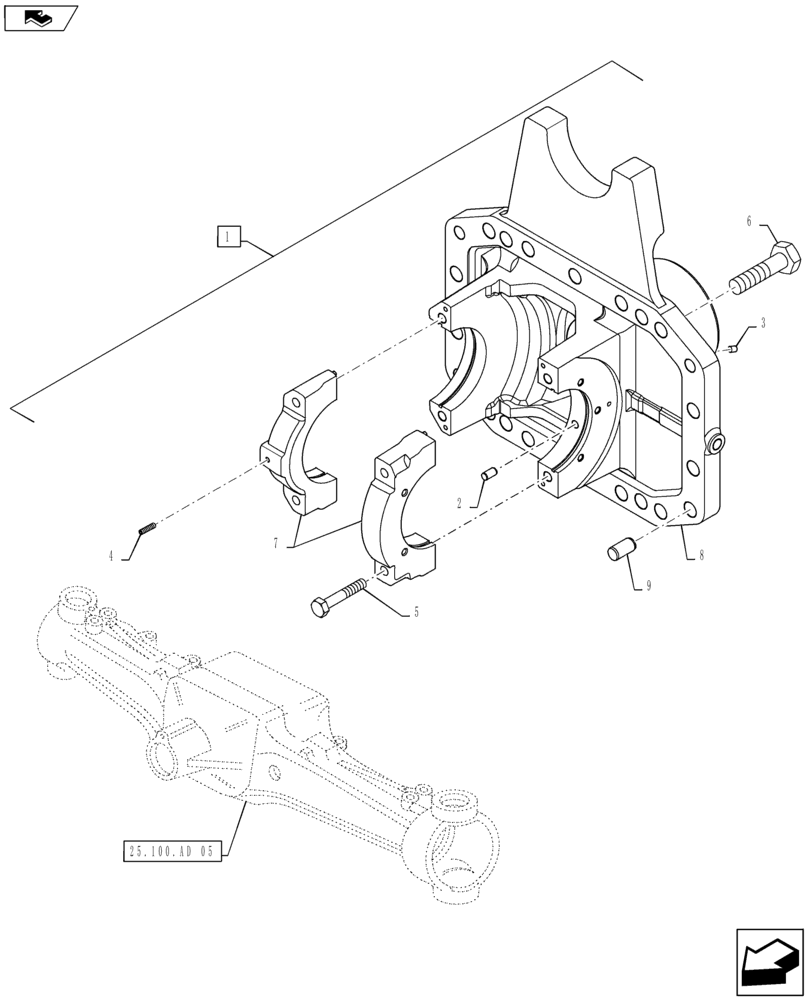

Схема запчастей Case IH MAXXUM 140 - (25.102.AC[06]) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM
2
home
6
9
7
1
3
25.100.ad 05
4
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87491166

SUPPORT

Incl 2, 3, 5 - 9

1шт.

2

10333210

DOWEL,M4 x 10.00mm

1шт.

3

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

4

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

4шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

4966244

PIN,5mm OD x 15mm L

2шт.
