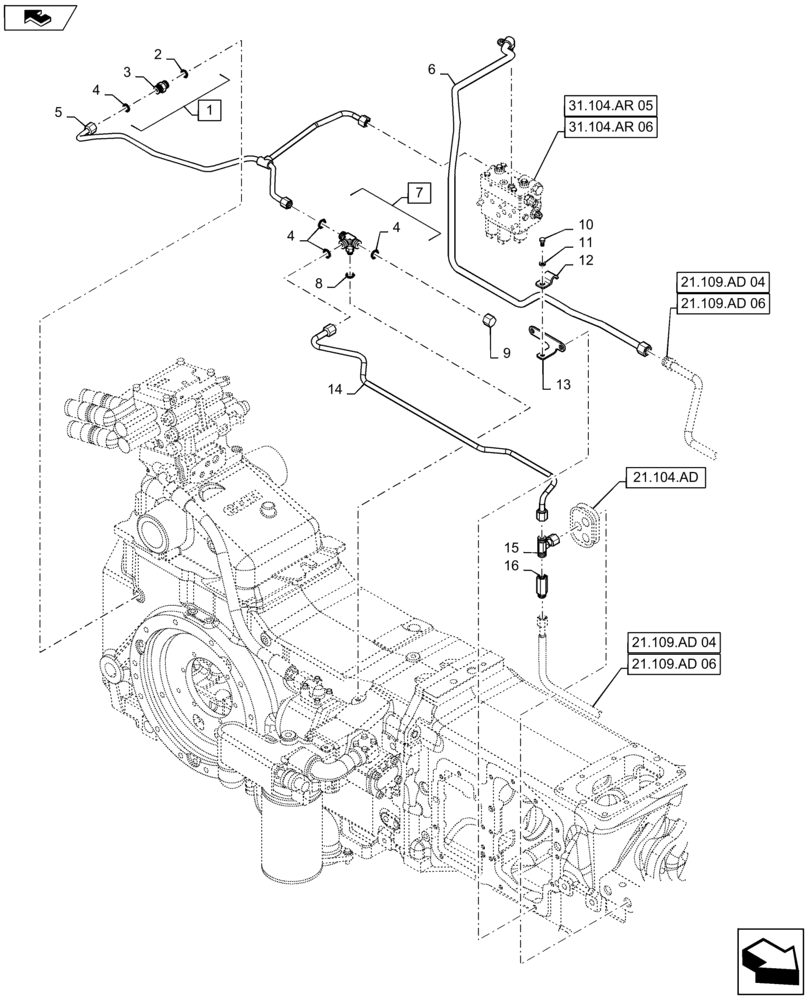

Запчасти Case IH MAXXUM 140 (31.104.AW[03]) - HYDRAULIC PUMP 80 L/MIN FD - PTO LUBRICATION PIPES (31) - IMPLEMENT POWER TAKE OFF

1

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl 2 - 4

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

4шт.

5

84543457

HYD TUBE

Lube PTO Delivery

1шт.

6

84539345

HYD TUBE

Supply cover

1шт.

7

47132978

TEE

Incl 4, 8

1шт.

8

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

9

9840575

CAP,13/16" - 16 ORFS

1шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

11

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

12

5178447

BRACKET

1шт.

13

84475370

BRACKET

1шт.

14

84476944

TUBE

1шт.

15

5194071

TEE

1шт.

16

47131972

ADAPTER

1шт.
