(35.204.BL[05]) - VAR - 331845, 333845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES - FRAME AND CONTROL LEVERS

Запчасти Case IH MAXXUM 140 (35.204.BL[05]) - VAR - 331845, 333845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES - FRAME AND CONTROL LEVERS (35) - HYDRAULIC SYSTEMS

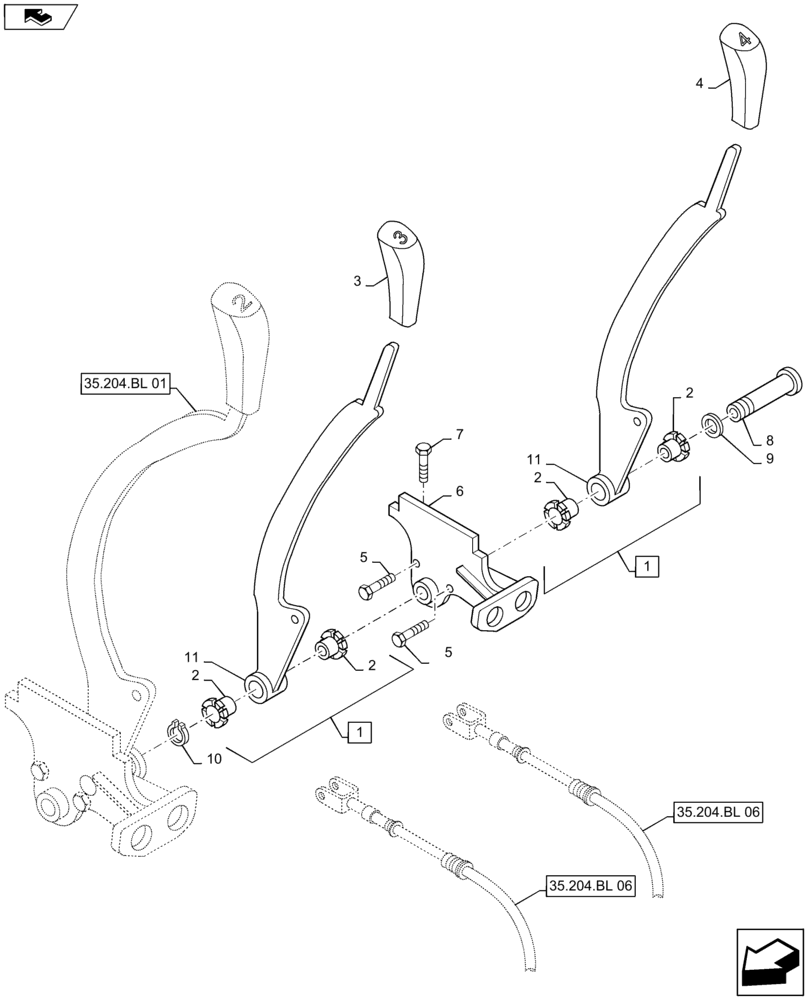

Схема запчастей Case IH MAXXUM 140 - (35.204.BL[05]) - VAR - 331845, 333845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES - FRAME AND CONTROL LEVERS (35) - HYDRAULIC SYSTEMS
11
35.204.bl 06
11
5
1
35.204.bl 01
4
7
2
2
2
8
6
9
10
2
1
home
3
35.204.bl 06
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82036839

LEVER

Incl 2, 11

2шт.

2

82035633

BUSHING

4шт.

3

82037912

KNOB

1шт.

4

82037913

KNOB

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

11088171

SNAP RING,M11

1шт.

11

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

2шт.

Выбрано товаров: 11
