(1.42.0/01) - SUSPENDED FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEER. PIPES (VAR.330414-330427-330429-330430)

Запчасти Case IH MAXXUM 140 (1.42.0/01) - SUSPENDED FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEER. PIPES (VAR.330414-330427-330429-330430) (04) - FRONT AXLE & STEERING

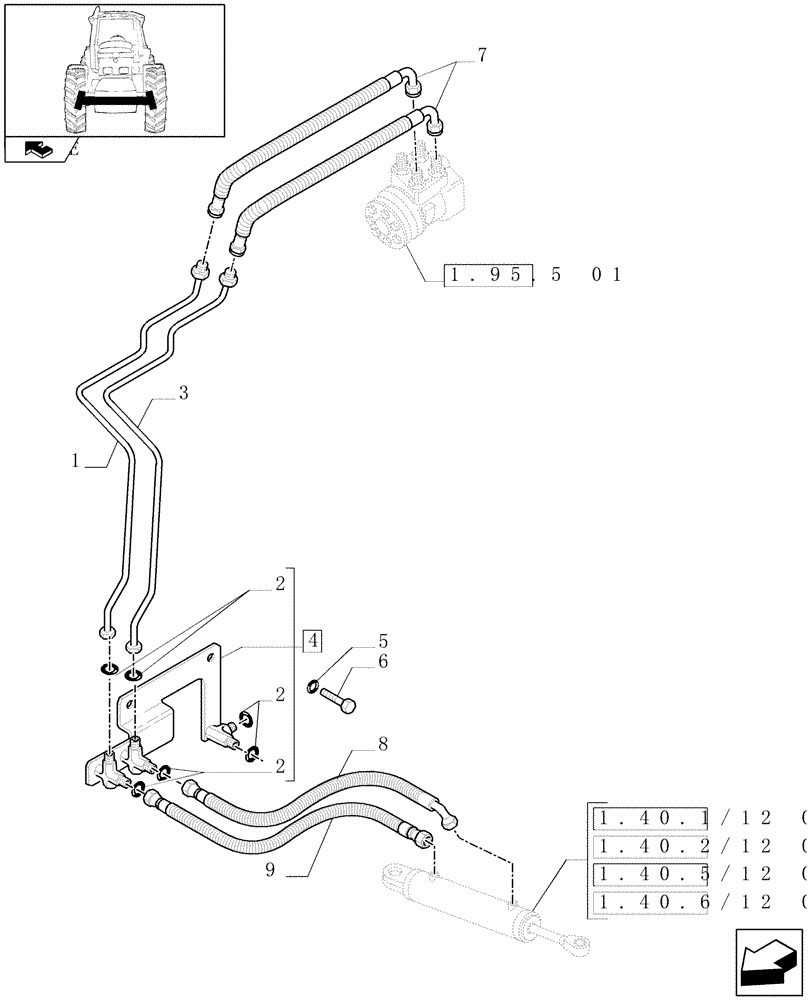

Схема запчастей Case IH MAXXUM 140 - (1.42.0/01) - SUSPENDED FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEER. PIPES (VAR.330414-330427-330429-330430) (04) - FRONT AXLE & STEERING
2
3
7
2
8
5
home
1.40.5/12 01
1.40.6/12 01
1.40.1/12 01
1.40.2/12 01
1.95.5 01
2
4
6
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84188754

HYD TUBE,8 mm ID x 10 mm OD

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

1

84188757

HYD TUBE,8 mm ID x 10 mm OD

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

6шт.

3

84188755

HYD TUBE,8 mm ID x 10 mm OD

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

3

84188758

HYD TUBE,8 mm ID x 10 mm OD

Incl. 2

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

4

87325469

SUPPORT ASSY.

11/16 -16

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

7

82035847

FLEXIBLE HOSE,9.53mm ID x 540mm L, SAE 100R2

11/16 - 16, MM.540

2шт.

8

87359495

HYDRAULIC HOSE,520.00mm

HOSE 520MM

1шт.

9

82036782

HYDRAULIC HOSE,450.00mm

450MM

1шт.
