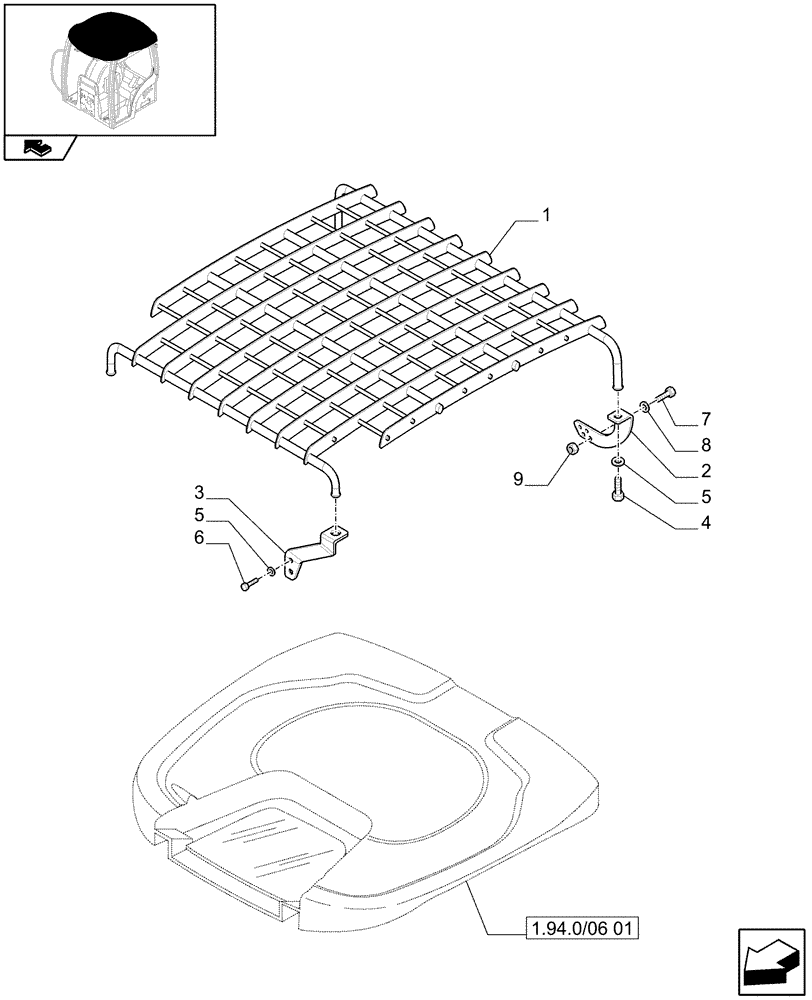

Запчасти Case IH MAXXUM 140 (1.94.0/06[04]) - ROOF WITH LOW PROFILE - EXTERNAL PROTECTION - D6763 - C6825 (VAR.332515) (10) - OPERATORS PLATFORM/CAB

1

84289643

SHIELD

Black

1шт.

2

84289664

BRACKET

Rear RH, Black

1шт.

2

84289665

BRACKET

Rear LH, Black

1шт.

3

84289660

REINFORCEMENT

Front RH, Black

1шт.

3

84289661

REINFORCEMENT

Front LH, Black

1шт.

4

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

6

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

8

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

4шт.

9

15896214

NUT,M6, Cl 8

4шт.
