(1.93.3/ Q[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (VAR.330709)

Запчасти Case IH MAXXUM 140 (1.93.3/ Q[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB

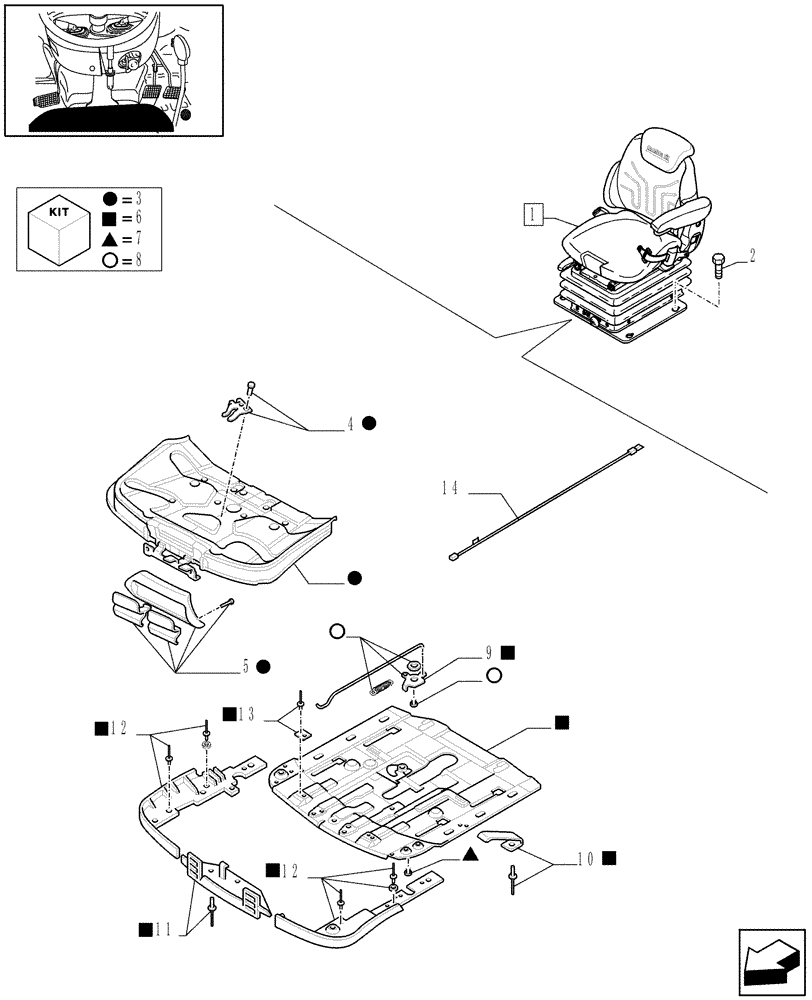

Схема запчастей Case IH MAXXUM 140 - (1.93.3/ Q[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB
6
6
12
3
3
7
14
8
8
6
1
6
3
11
6
13
4
6
6
10
12
3
8
6
5
9
7
7
6
2
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84122197

SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191153

ADJUSTER

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

Incl. 7

1шт.

7

84191202

SET OF PARTS

1шт.

8

84191203

CONTROL LEVER

1шт.

9

345775A1

LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

84191178

SET OF PARTS

Incl. 14

1шт.

14

84191190

WIRE HARNESS

1шт.
