(1.92.3/01) - ROOF WITH LOW PROFILE - WINDSHIELD AND RELATED PARTS (STD + VAR.330613)

Запчасти Case IH MAXXUM 140 (1.92.3/01) - ROOF WITH LOW PROFILE - WINDSHIELD AND RELATED PARTS (STD + VAR.330613) (10) - OPERATORS PLATFORM/CAB

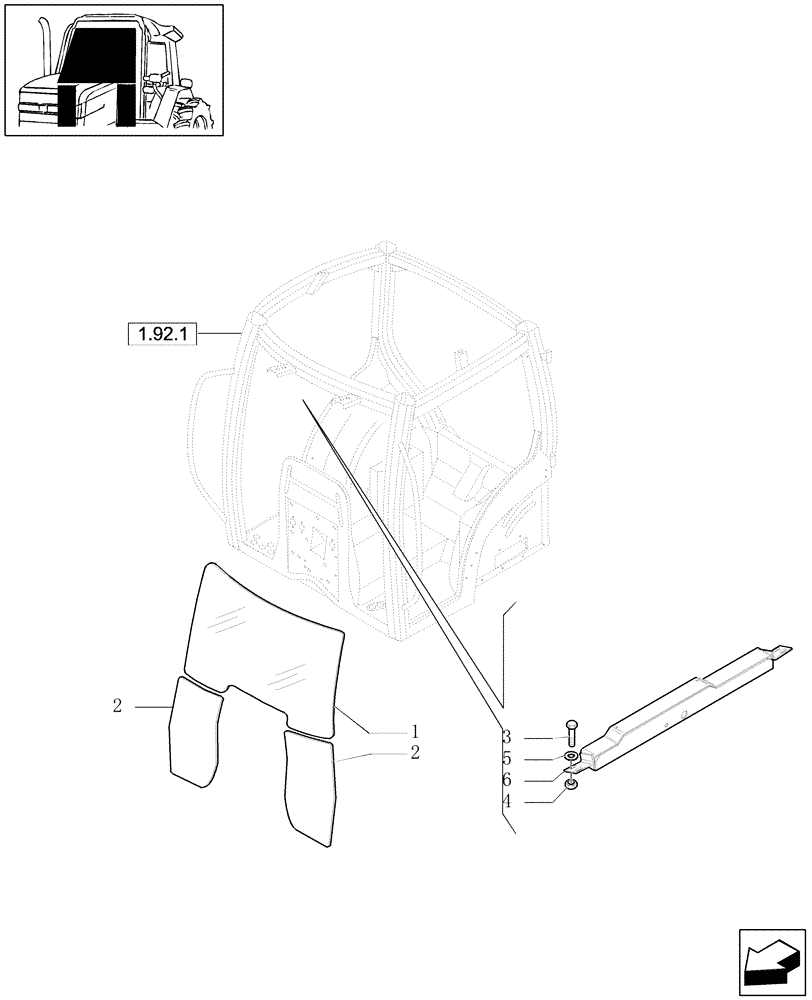

Схема запчастей Case IH MAXXUM 140 - (1.92.3/01) - ROOF WITH LOW PROFILE - WINDSHIELD AND RELATED PARTS (STD + VAR.330613) (10) - OPERATORS PLATFORM/CAB
4
1
2
2
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87304257

WINDSHIELD

1шт.

2

87304261

CAB GLASS ASSY

LH

1шт.

2

87304259

CAB GLASS ASSY

RH

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

6

87327975

SUPPORT

1шт.
