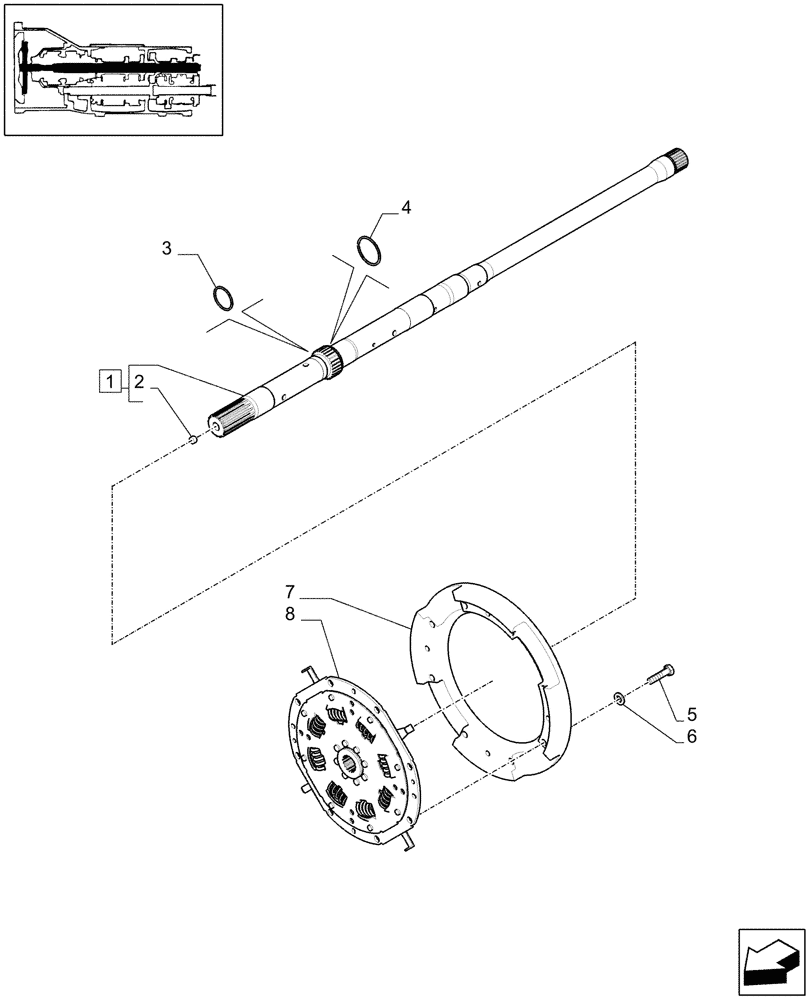

Запчасти Case IH MAXXUM 140 (1.25.3/09) - TRANSMISSION 16X16 & 17X16 - TORSIONAL DAMPER AND INPUT SHAFT (STD + VAR.330247-330291-332245) (03) - TRANSMISSION

1

47126898

SHAFT

ASSY

1шт.

2

81863712

PLUG

1шт.

3

81867117

SEAL,32mm ID x 36.60mm OD x 1.60mm Thk

1шт.

4

5196019

SNAP RING,1.5mm Thk, Ext

1шт.

5

15540829

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

8шт.

6

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

8шт.

7

47133829

DISC,395mm OD

1шт.

8

87527557

DAMPER

348mm OD, for 6 Cylinders

1шт.

8

87527557R

REMAN-CLUTCH ASSY

1шт.

8

87527557C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.
