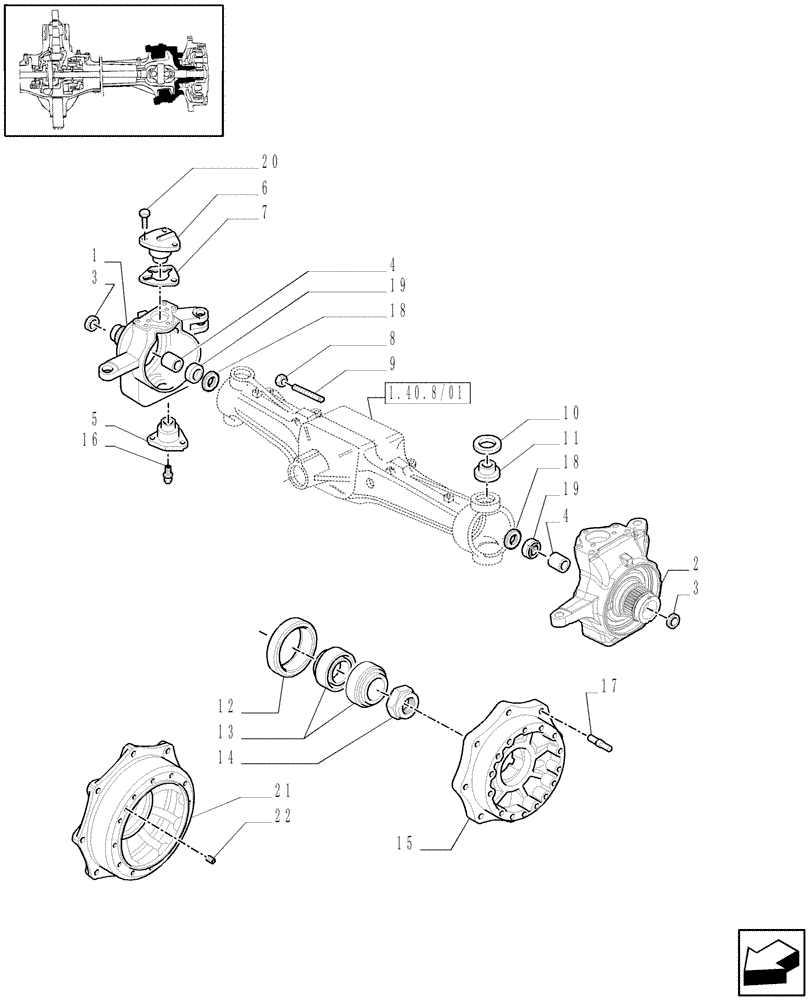

Запчасти Case IH MAXXUM 140 (1.40. 8/02[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - STEERING AXLES AND HUBS - C6683 (VAR.330429) (04) - FRONT AXLE & STEERING

1

87330073

STEERING KNUCKLE

RH, Incl.3,4

1шт.

2

87330054

STEERING KNUCKLE

LH, Incl.3,4

1шт.

3

87592390

BUSHING,53mm ID x 68mm OD x 7.7mm L

2шт.

4

87660602

BUSHING,52mm ID x 56mm OD x 28mm L

2шт.

5

87333763

BALL STUD

BALL PIN

2шт.

6

87361688

BALL STUD

BALL PIN

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

0.10MM

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

0.15MM

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

150 x 180 x 14.5-16

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538x158.750x23.02

4шт.

14

5141692

NUT,M90 x 2

2 M90 x 2

2шт.

15

87656921

HUB

, Serial Range: -C5856

2шт.

16

13407211

LUBE NIPPLE,M10 x 1

3шт.

17

87618916

STUD

, Serial Range: -C5856

16шт.

18

87598114

SPACER,53.00mm ID x 78.00mm OD x 4.00mm

53 x 78 x 4

2шт.

19

87397905

OIL SEAL,52.00mm ID x 72.00mm OD x 16.50mm

52 x 72 x 16.5

2шт.

20

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

9шт.

21

87473598

HUB

Incl.22, Start Serial: D5856

2шт.

22

4985063

DOWEL,12mm OD x 20mm L

, Start Serial: D5856

2шт.
