(1.40. 8/10[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - SHAFT AND GEAR TRAIN - C5831 (VAR.330429)

Запчасти Case IH MAXXUM 140 (1.40. 8/10[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - SHAFT AND GEAR TRAIN - C5831 (VAR.330429) (04) - FRONT AXLE & STEERING

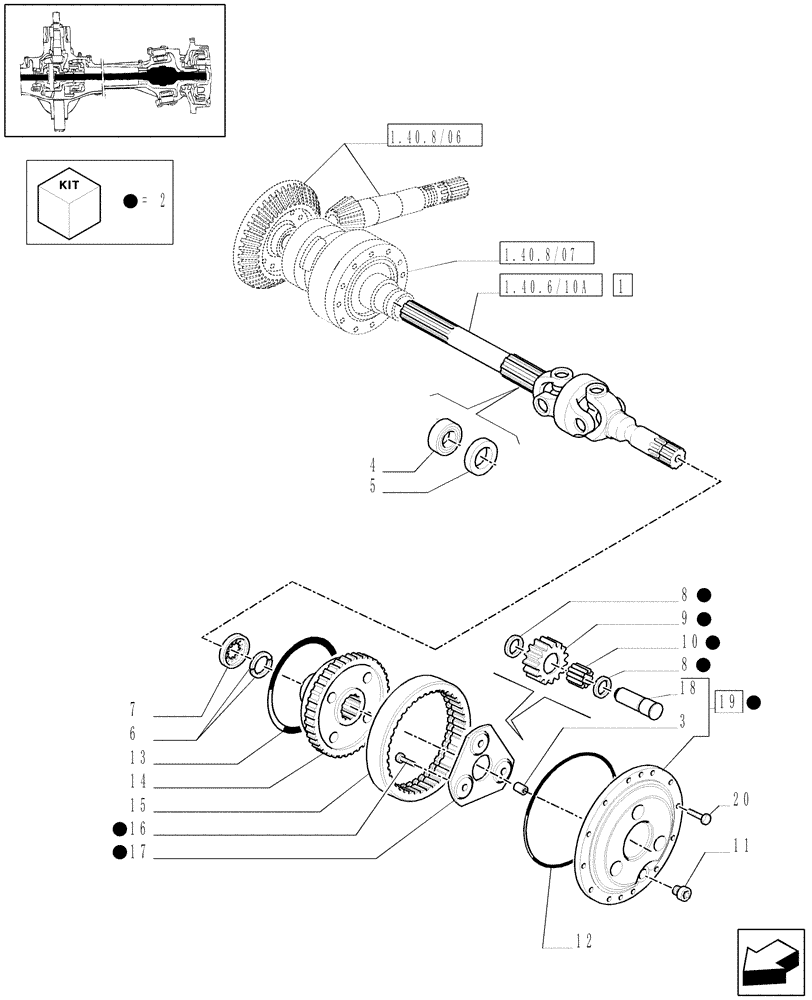

Схема запчастей Case IH MAXXUM 140 - (1.40. 8/10[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - SHAFT AND GEAR TRAIN - C5831 (VAR.330429) (04) - FRONT AXLE & STEERING
2
2
15
14
18
20
1
16
19
13
2
2
5
11
3
9
7
17
8
8
6
2
4
1.40.8/06
2
1.40.8/07
1.40.6/10a
2
10
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87346028

AXLE-SHAFT, ARTICULA

ASSY, LH

1шт.

1

87357730

SHAFT

ASSY, RH

1шт.

2

87330316

CARRIER

ASSY

2шт.

3

87604978

BUSHING

1шт.

4

87349670

SEAL,42mm ID x 62mm OD x 23mm Thk

2шт.

5

87598115

SPACER

2шт.

6

87525785

RING

2шт.

7

87592363

NOTCHED DISK

2шт.

8

87330360

THRUST WASHER

12шт.

9

87330345

IDLER PINION

6шт.

10

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

6шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

D=30

2шт.

12

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

2шт.

13

87330370

SNAP RING,242.20mm ID

2шт.

14

87330372

RING GEAR

2шт.

15

87330371

RING GEAR

2шт.

16

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

87604534

PLATE

2шт.

18

87330329

CARRIER

6шт.

19

87330329

CARRIER

2шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.
