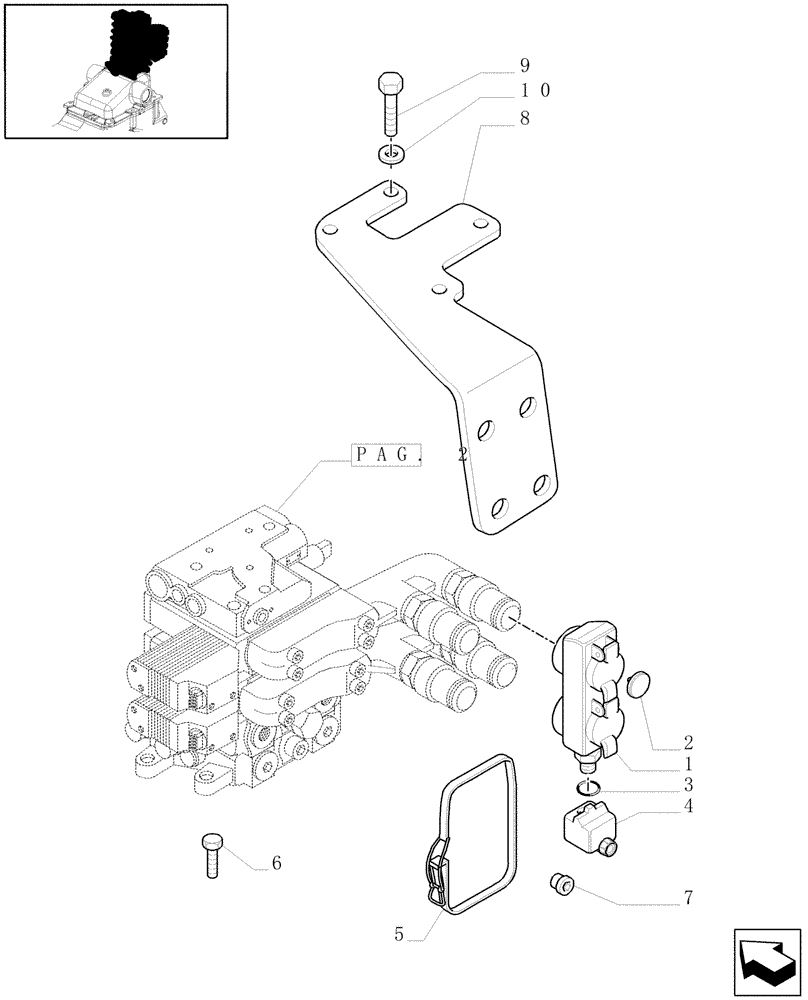

Запчасти Case IH MAXXUM 140 (1.82.7/03[01]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - C6788 (VAR.390729-390853 / 743744) (07) - HYDRAULIC SYSTEM

1

82035718

DUST CAP

, Serial Range: -C5909

2шт.

1

87733574

DUST CAP

Incl 2, Start Serial: D5909

2шт.

2

82029895

DISC,20mm D, Black

Black

4шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

82031972

RESERVOIR, HYDRAULIC

, Serial Range: -C5736

2шт.

4

87652228

RESERVOIR, HYDRAULIC

, Serial Range: D5736-C6264

2шт.

4

84161329

BOTTLE

, Start Serial: D6264

2шт.

5

82031973

SPRING CLIP

1шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

8

87499713

BRACKET

1шт.

9

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
