(1.93.3/ L[05]) - DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, OPS AND BELT - BREAKDOWN - W/CAB - D5518 (VAR.330709)

Запчасти Case IH MAXXUM 140 (1.93.3/ L[05]) - DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, OPS AND BELT - BREAKDOWN - W/CAB - D5518 (VAR.330709) (10) - OPERATORS PLATFORM/CAB

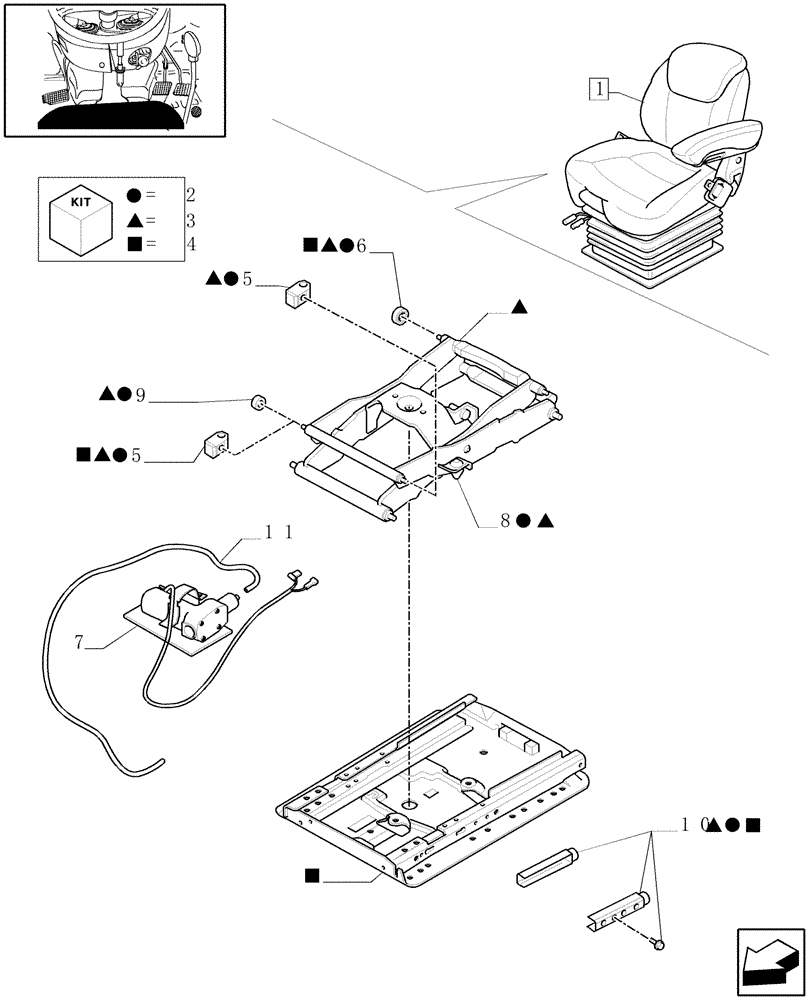

Схема запчастей Case IH MAXXUM 140 - (1.93.3/ L[05]) - DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, OPS AND BELT - BREAKDOWN - W/CAB - D5518 (VAR.330709) (10) - OPERATORS PLATFORM/CAB
9
11
3
4
6
4
2
5
7
2
2
3
2
2
4
2
4
3
8
1
3
3
10
3
5
2
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87572570

SEAT

ASSY

1шт.

2

82848105

KIT

Set of Wear Parts

1шт.

3

87396449

SUSPENSION

1шт.

4

398148A1

BASE

1шт.

5

87567830

THRUST BEARING

2шт.

6

82035057

ROLLER

4шт.

7

87663390

AIR COMPRESSOR

1шт.

8

71485476

BUMPER

2шт.

9

82035130

ROLLER

2шт.

10

87281748

STOP

1шт.

11

87313729

REPAIR KIT

1шт.
