(90.160.BL[09]) - VAR - 392204, 392440, 758497, 758590 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH

Запчасти Case IH MAXXUM 145 (90.160.BL[09]) - VAR - 392204, 392440, 758497, 758590 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

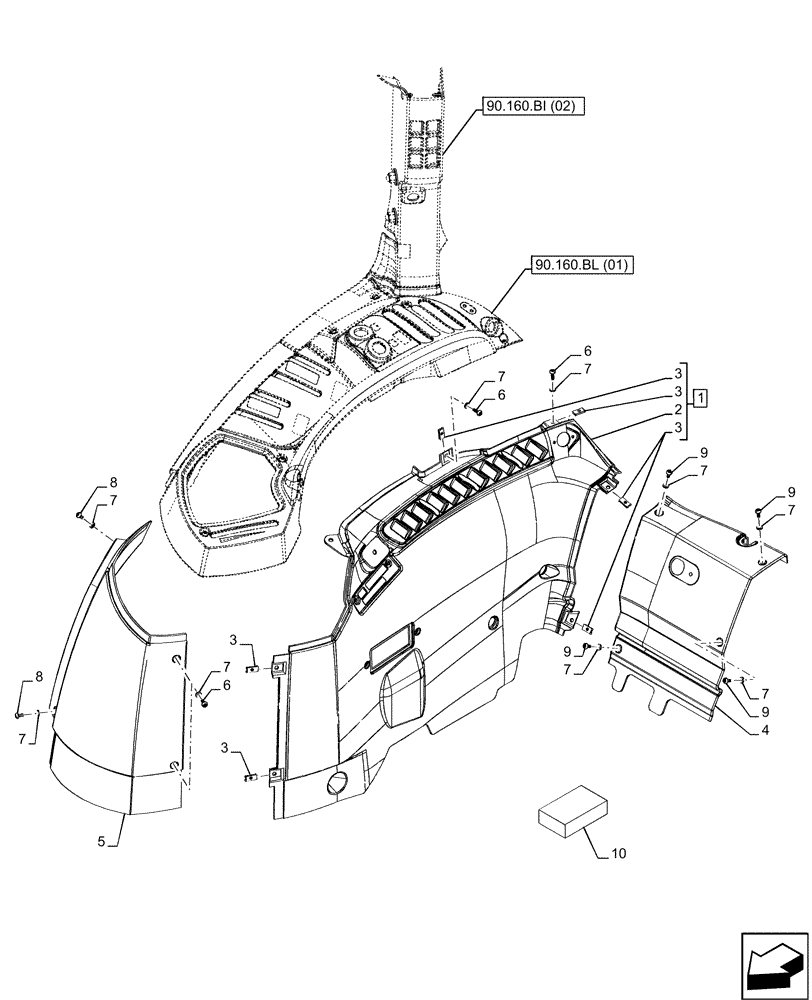

Схема запчастей Case IH MAXXUM 145 - (90.160.BL[09]) - VAR - 392204, 392440, 758497, 758590 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (01)
5
7
7
3
9
7
7
9
4
3
8
10
9
6
3
9
6
7
6
7
3
8
7
7
1
2
7
3
90.160.bi (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87674891

CONSOLE

Panel Control Cover, ASSY, Incl 2, 3 (Qty 5)

1шт.

2

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

3

87567755

SPRING NUT,M5

6шт.

4

87648150

PANEL

Electronics Module, Grey

1шт.

5

87648174

PANEL

Front Control Cover

1шт.

6

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

4шт.

7

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

10шт.

8

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

2шт.

9

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

10

81870060

FOAM INSULATION

1шт.
