(10.216.AY[01]) - VAR - 758223, 758235, 758240, 758241, 758527, 758530 - FUEL COOLER, LINE, 6 CYLINDER

Запчасти Case IH MAXXUM 150 (10.216.AY[01]) - VAR - 758223, 758235, 758240, 758241, 758527, 758530 - FUEL COOLER, LINE, 6 CYLINDER (10) - ENGINE

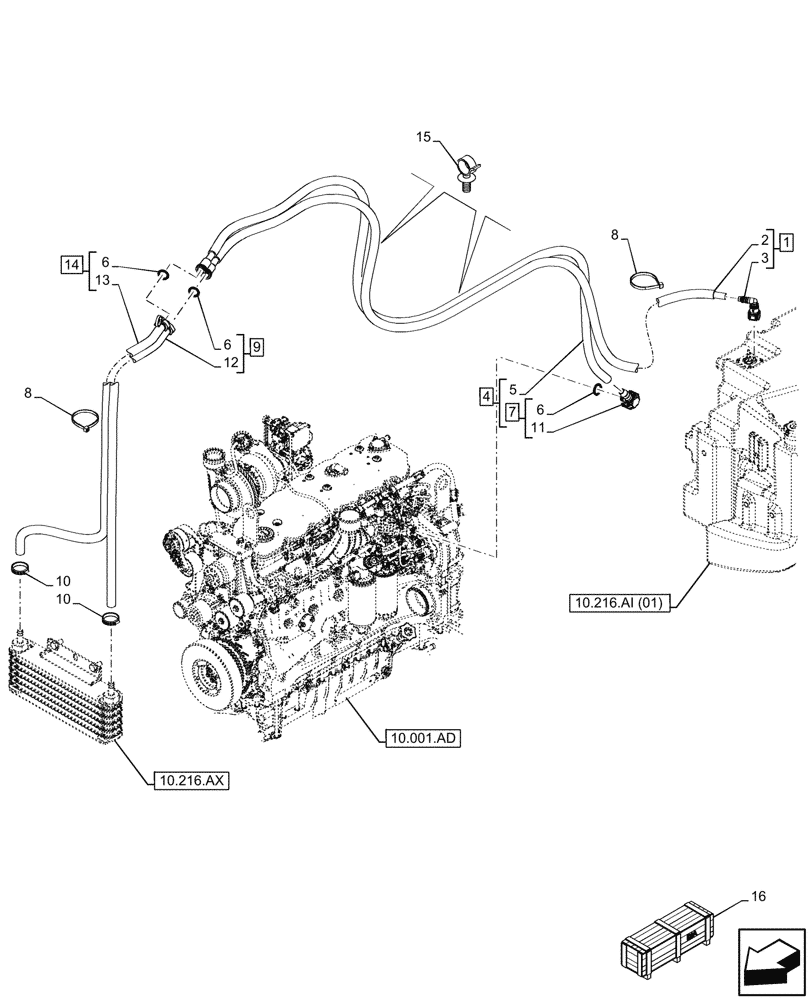

Схема запчастей Case IH MAXXUM 150 - (10.216.AY[01]) - VAR - 758223, 758235, 758240, 758241, 758527, 758530 - FUEL COOLER, LINE, 6 CYLINDER (10) - ENGINE
10.216.ai (01)
11
6
4
8
2
10
15
12
16
1
13
10
9
6
14
6
8
3
7
5
10.216.ax
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47469730

FUEL TUBE,2409mm

ASSY, 2409mm , Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

3

84367132

FITTING,5/16'

1шт.

4

47469197

FUEL TUBE

ASSY , Incl 5, 7

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.

7

84283283

FITTING,11.9mm D - 10.6mm D

ASSY, Incl 6 (Qty1), 11

1шт.

8

14560287

CABLE TIE,207.00mm L

2шт.

9

47469772

FUEL TUBE,686mm

ASSY, 686mm, Incl 6 (Qty 1), 12

1шт.

10

13000290

HOSE CLAMP,12mm - 18mm, Worm Gear

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

Tube, Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

Tube, Incl in 14

1шт.

14

47469769

FUEL TUBE

ASSY, 609mm, Incl 6 (Qty 1), 13

1шт.

15

47843663

CLIP

2шт.

16

719831034

DIA KIT, TRACTOR

Fuel Cooler (6 Cyl.), Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
