(25.108.AB[12]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, PLANETARY REDUCER

Запчасти Case IH MAXXUM 150 (25.108.AB[12]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

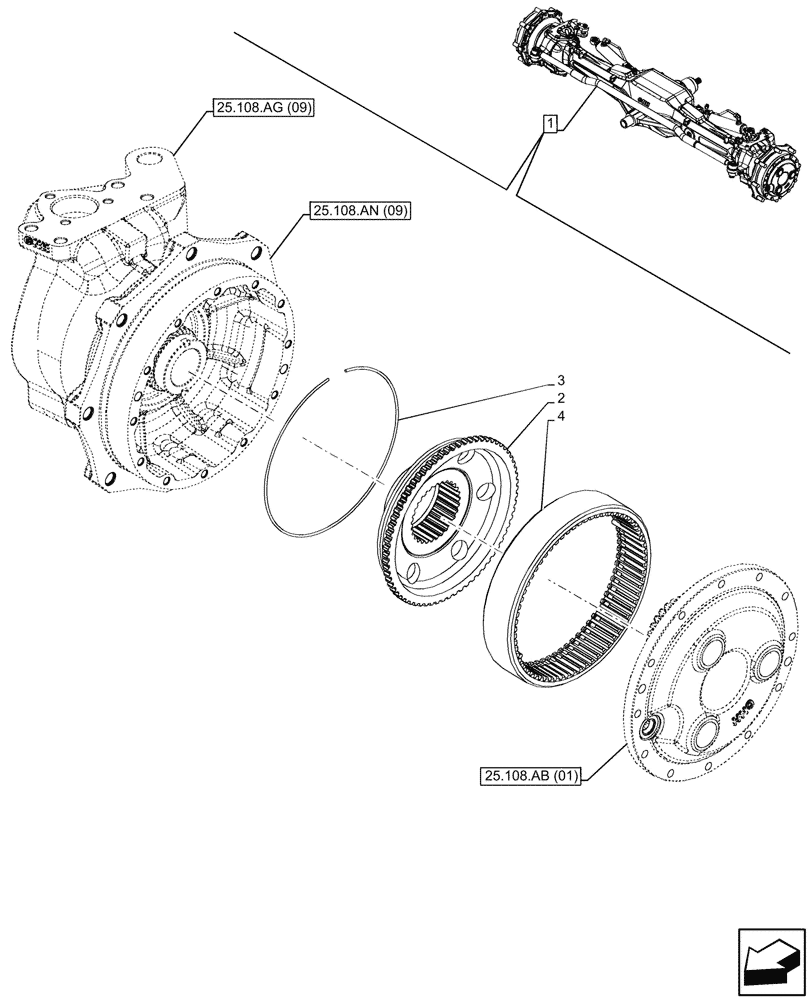

Схема запчастей Case IH MAXXUM 150 - (25.108.AB[12]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM
25.108.ag (09)
4
3
2
1
25.108.ab (01)
25.108.an (09)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84180939

LIVE FRONT AXLE

ASSY, Incl 2 - 4

1шт.

See also Axle Components in Figure 25.100.AA (09), 25.100.AD (09), 25.108.AA (09), 25.108.AG (09), 41.216.AN (12)

1шт.

2

84224948

NOTCHED DISK

1шт.

3

5151438

LOCKING RING,222mm ID, Int

1шт.

4

5191770

RING GEAR

1шт.
