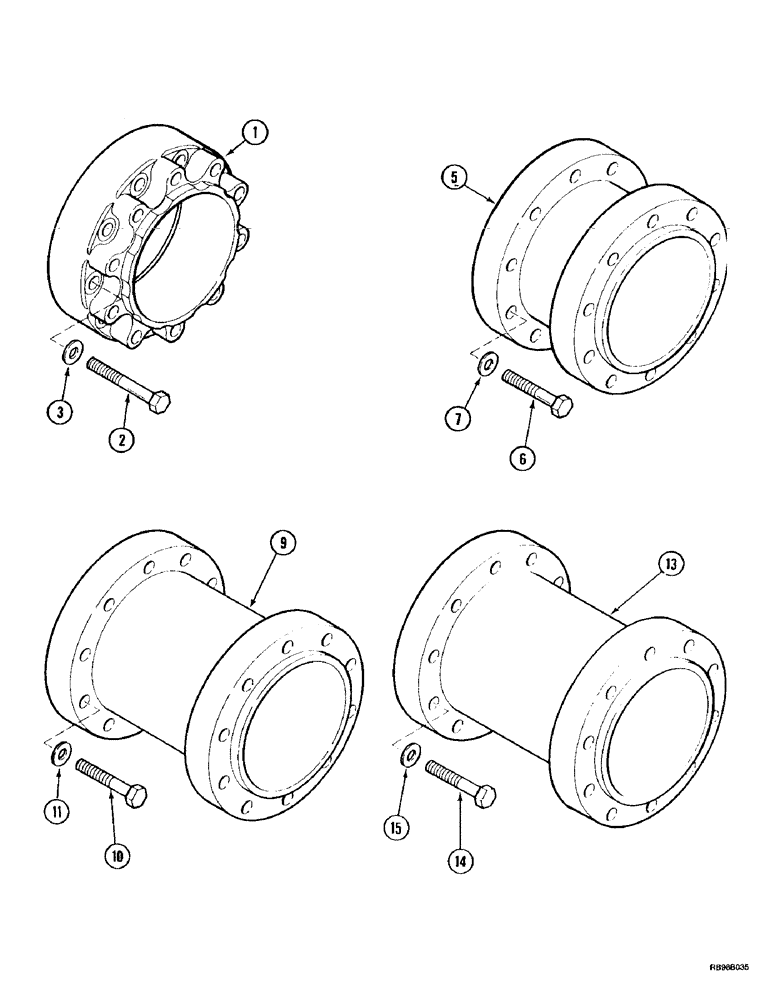

Запчасти Case IH MX180 (6-132) - SPACER, DUAL REAR WHEELS (06) - POWER TRAIN

320094A

KIT

attachment, order from machinery price list, consists of: Ref. 1 - 3

1шт.

1

250750A3

SPACER

5 in.

2шт.

2

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

20шт.

To bolt a wheel and a spacer to one hub, use 827-22140 bolts, M22 x 140, 10.9 ZND. Reference INF7256. TJM - TSG 3/13/01

1шт.

3

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

320095A

KIT

attachment, order from machinery price list, consists of: Ref. 5 - 7

1шт.

5

248484A3

SPACER

10 in.

2шт.

6

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

20шт.

7

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

320096A

KIT

attachment, order from machinery price list, consists of: Ref. 9 - 11

1шт.

9

248487A3

SPACER

13 in.

2шт.

10

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

20шт.

11

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

320097A

KIT

attachment, order from machinery price list, consists of: Ref. 13- 15

1шт.

13

248103A2

SPACER

15 in.

2шт.

14

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

20шт.

15

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.
