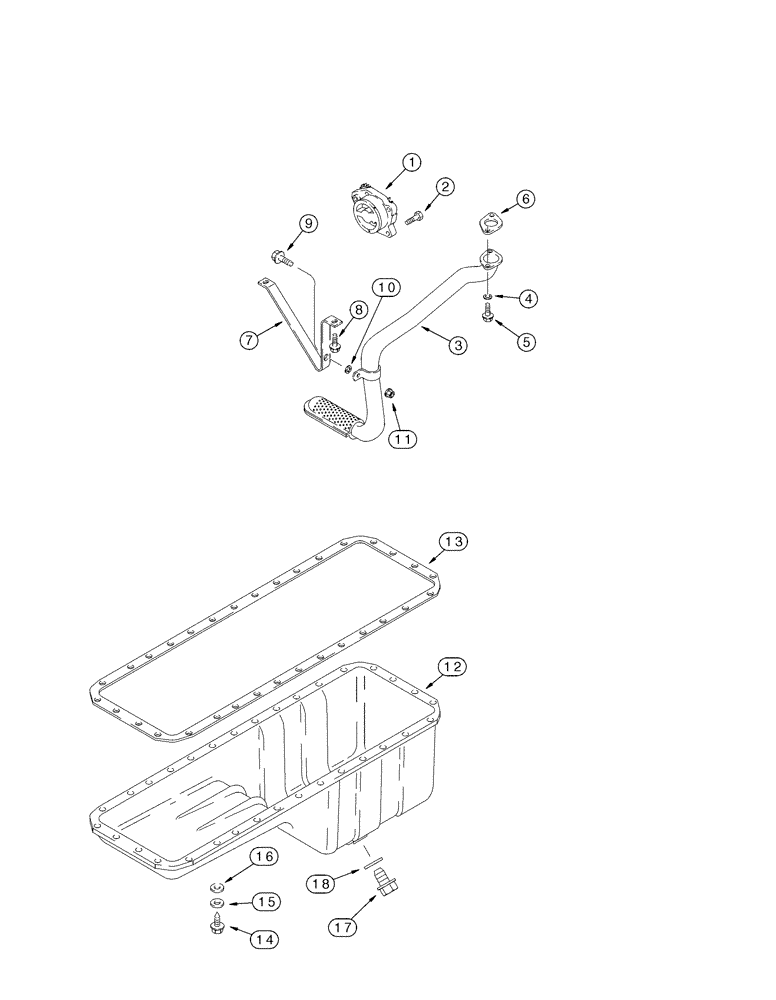

Запчасти Case IH MX220 (02-27) - OIL PUMP AND OIL PAN, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J948071

PUMP,24.17 CC

New

1шт.

1

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

1

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J928828

TUBE ASSY.,31.75 mm OD x 514.17, 201 mm L

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

J906216

FLANGE NUT

M6

1шт.

12

J933347

ENGINE OIL PAN

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order A77679

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

15

J910266

LOCK WASHER

If Equipped

32шт.

16

J908316

WASHER

M9 x 16 x 1, If Equipped

32шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

A77679

GASKET KIT

Consists Of 6, 13, 18, J902425

1шт.
