(09-47) - SWIVEL SEAT

Запчасти Case IH MX150 (09-47) - SWIVEL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

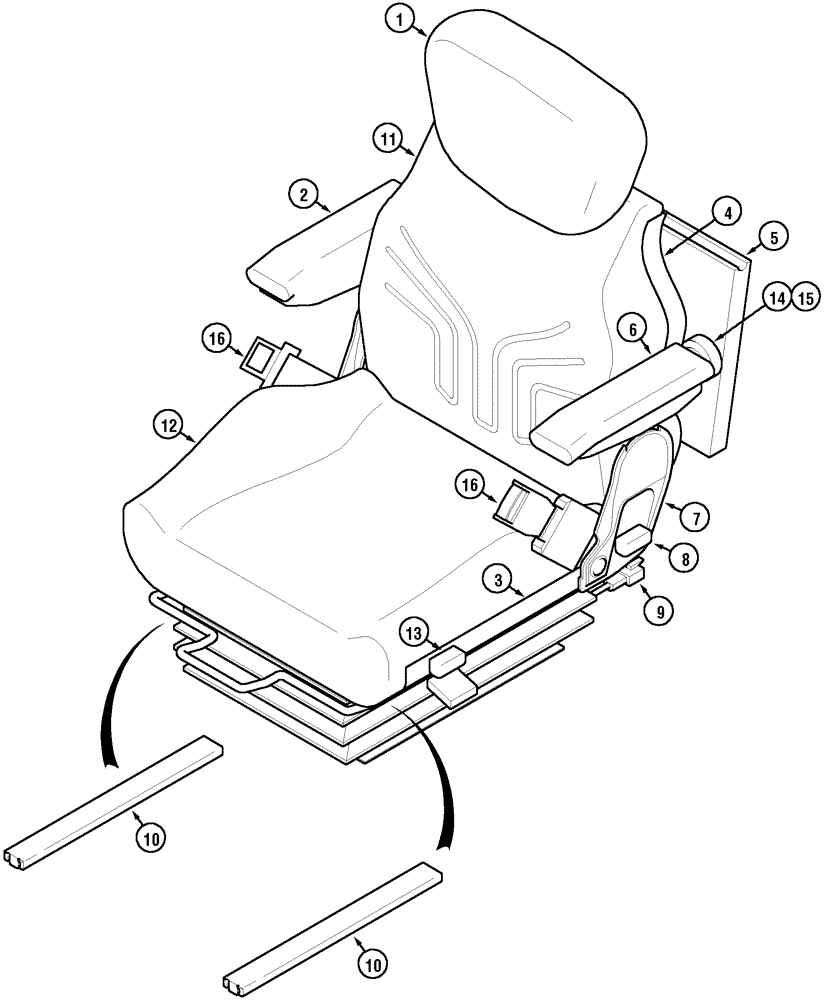

Схема запчастей Case IH MX150 - (09-47) - SWIVEL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
9
12
15
13
16
4
6
11
2
10
5
7
10
1
3
16
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Maximo, JJE098210 -

1шт.

362072A1

SEAT ASSY.

Without Seat Belt, Includes 1 - 15

1шт.

373750A3

SEAT ASSY.

Class IV, With Seat Belt, Includes 1A - 4A,5 - 11A,12 - 16

1шт.

373753A1

SEAT ASSY.

Class III, With Seat Belt, Includes 1A - 4B,5 - 11A,12 - 16

1шт.

1

364415A1

HEADREST, SEAT

HEADREST

1шт.

1b

390807A1

HEADREST, SEAT

HEADREST

1шт.

2

375059A1

ARMREST ASSY.

Armrest, Right

1шт.

3

375058A1

HOUSING

Seat Frame

1шт.

4

375055A1

BACKREST

Backrest

1шт.

4b

390805A1

BACKREST

Backrest

1шт.

4c

390806A1

BACKREST

Backrest

1шт.

5

375070A1

CASE

Manual Compartment

1шт.

6

375060A1

ARMREST ASSY.

Armrest, Left

1шт.

7

375061A1

COVER

Cover, Armrest

1шт.

8

375063A1

SET OF PARTS

Adjustment, Lever

1шт.

9

375064A1

SWITCH

Operator Presence Safety Switch

1шт.

10

375065A1

SLIDE

Slide

1шт.

11

375068A1

SEAT BACK

Seat Cushion

1шт.

11b

390804A1

CUSHION, SEAT

Seat Cushion

1шт.

12

375069A1

SEAT CUSHION

Seat Cushion

1шт.

13

375067A1

SET OF PARTS

Swivel

1шт.

14

375056A1

SUPPORT

Lumbar

1шт.

15

375057A1

ADJUSTER

Lumbar, Adjustment

1шт.

16

375066A1

SAFETY BELT

Seat Belt

1шт.
